Generated On September 20, 2018
Visit our website at: www.kkmfg.com
190SL - Frame and Floors - Pg. 1
110-350-06-33 Stud Mount, Need (Requires 2) 304.00
121-610-00-17 Tube Assembly, Bumper Mount 154.35

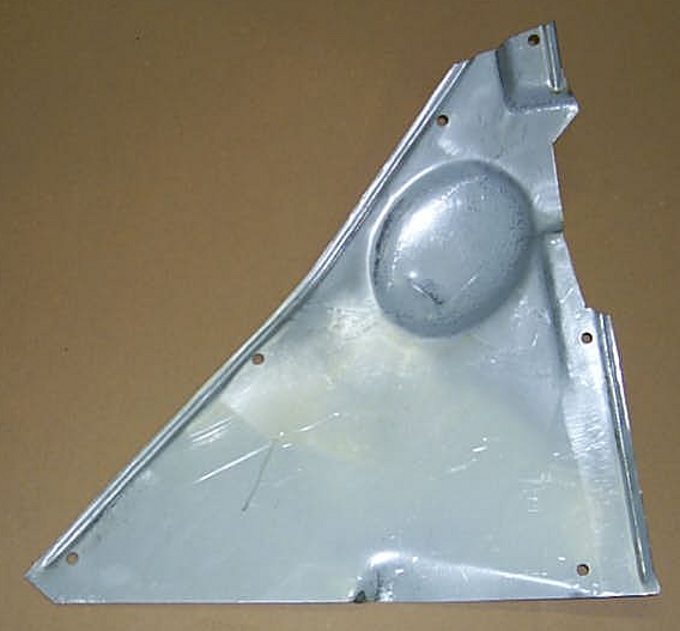

121-620-00-42 Shield, Master Cylinder 92.61
180-610-01-10 Rail, Rear Frame Assembly, Left 411.60
180-610-02-10 Rail, Rear Frame Assembly, Right 411.60
641-28 Floor, Trunk, Rear Side, Left 130.00
611-15/16A Frame Rail, Repair Piece (Requires 4) 32.00
611-15C Rail, Rear Frame, Upper, Left 74.09

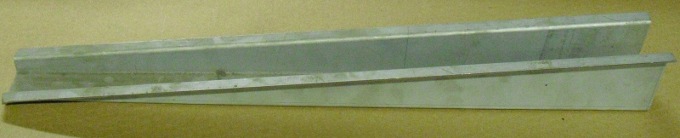

611-16C Rail, Rear Frame, Upper, Right 74.09
611-17 Support, Frame, Left 37.29
611-18 Support, Frame, Right 37.29
611-19 Frame Rail, Left 46.92

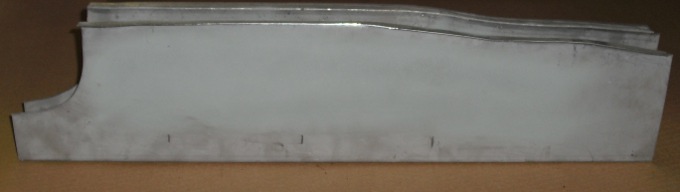

611-1A Support Frame Rear, Behind Seat (Requires 2) 101.87
611-20 Rail, Frame, Upper, Right 46.92
611-21 Frame Rail, Assembly, Left 150.65
611-21B Frame Rail, Intermediate, Left 88.79
611-22 Frame Rail, Assembly, Right 150.65
611-22B Frame Rail, Intermediate, Right 88.79
611-29 Tube, Front Bumper Mount 52.00

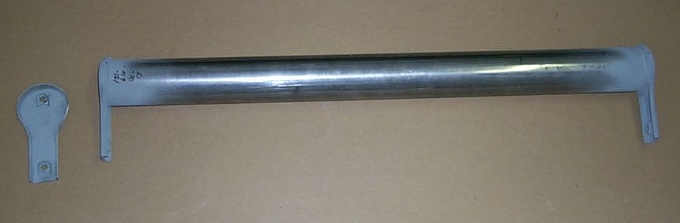

611-30 Mount, Bumper Bracket 50.42
611-32 Jackport, Front (Requires 2) 151.98

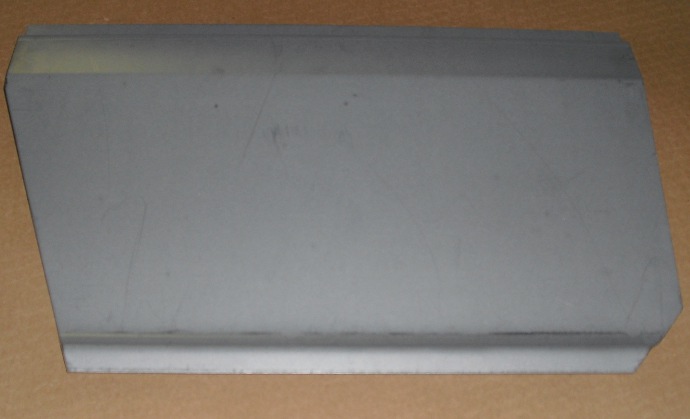

611-34 Floor, False, Left, Steel 43.22
611-35 Floor, False, Right, Steel 43.22

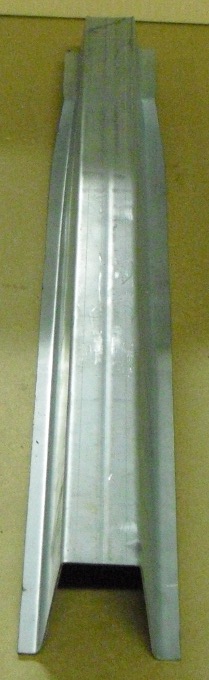

611-36 Support, Seat (Requires 2) 58.65
611-44A Support, Trailing, Left 149.65

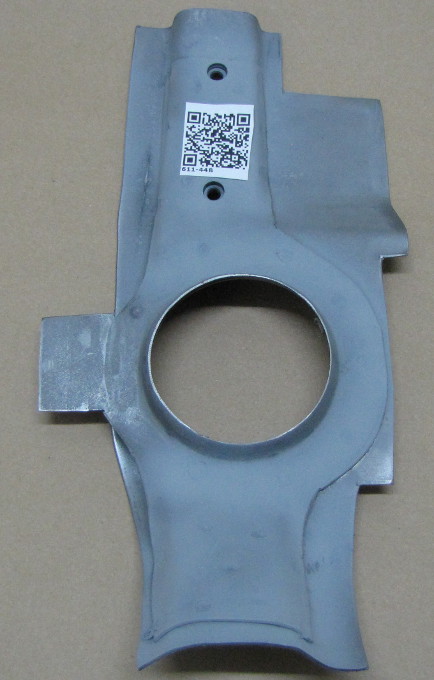

611-44B Spring Tower, Left 104.96
611-44C Rail, Frame Rail, Left 142.00
611-45A Support, Trailing, Right 149.65
611-45B Spring Tower, Right 104.96
611-45C Rail, Frame Rail, Right 142.00

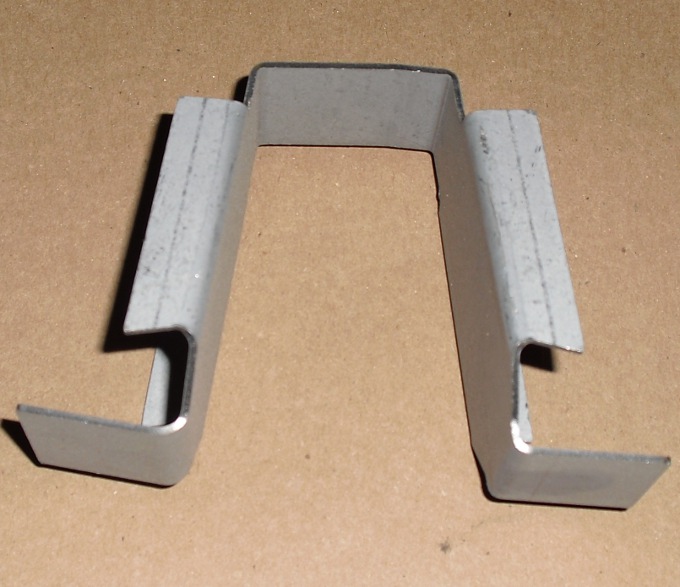

611-46 Reinforcement to Trailing Arm 18.52
611-47 Cap, Left, Front Frame Rail 95.00
611-48 Cap, Frame Rail, Front, Right 95.00

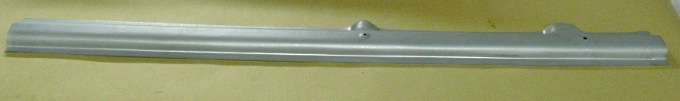

611-49 Cap, Frame, Front, Center, Left 96.29
611-50 Cap, Frame, Front, Center, Right 96.21

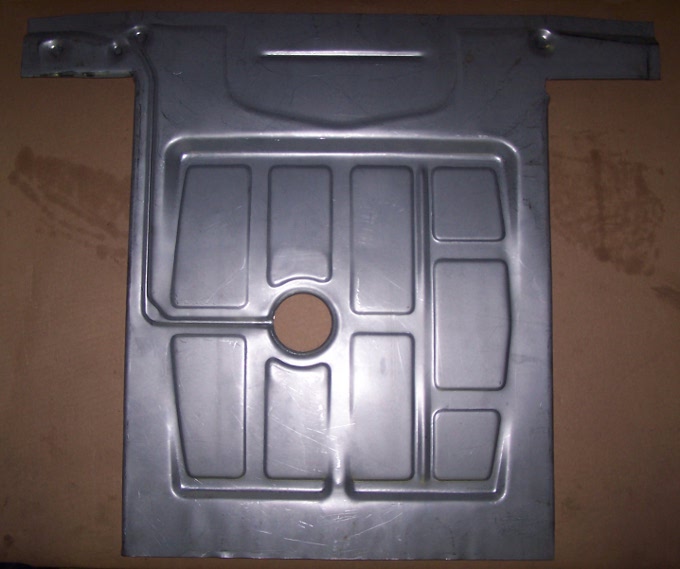

611-52A Floor, Trunk, Center 302.53
611-52B Floor, Trunk, Rear 117.31
611-53 Crossmember, Rear, Bottom 225.00
611-57 Floor, Left Front 138.95

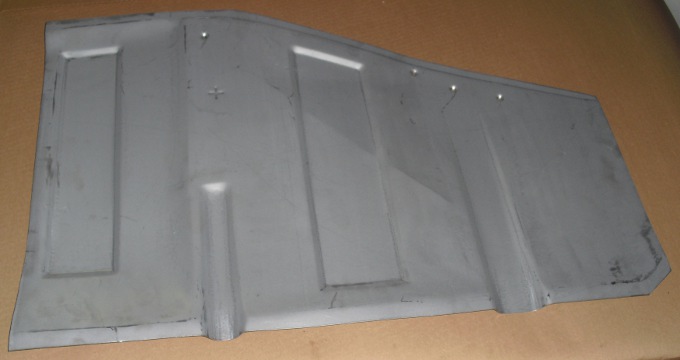

611-58 Floor, Front, Right 138.95
611-59 Floor, Left, Rear 167.93

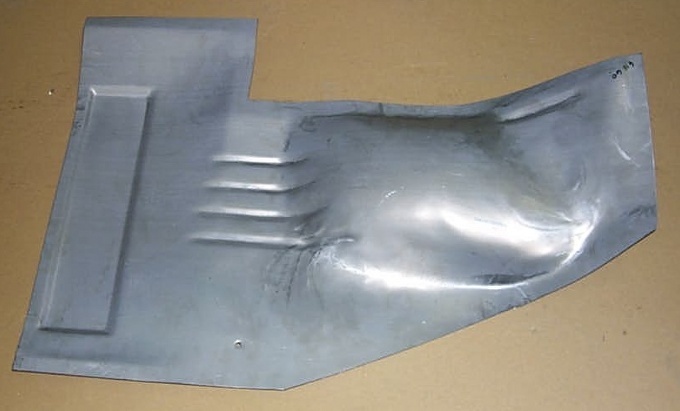

611-60 Floor, Rear, Right 170.40

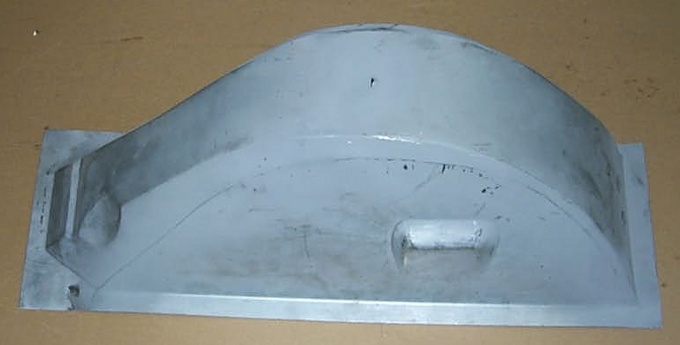

611-66 Tire Well, Left 341.04
611-67 Tire Well, Right 341.04

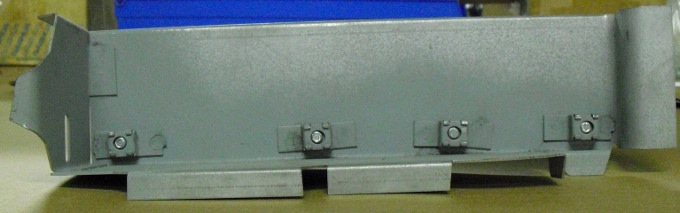

611-68 Seat Bracket, Inner, Left 80.00
611-69 Seat Bracket, Inner, Right 80.00

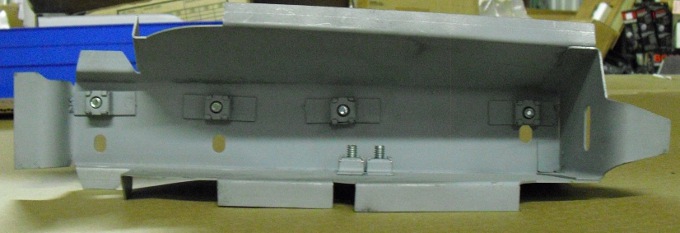

611-70 Seat Bracket, Outer, Left 80.00
611-71 Seat Bracket, Outer, Right 80.00
611-72 Jackport, Rear (Requires 2) 60.51
611-73 Bracket, Fuel Tank Mounting (This part is included with Spare Tire Wells) 9.41
611-78A Firewall, Repair, Left 71.59
611-78B Firewall, Repair, Right 71.59
611-82 Cover, Fuel Filler Neck 68.53
641-28 Floor, Trunk, Rear Side, Left 130.00
641-29 Floor, Trunk, Rear Side, Right 130.00

190SL - Body Panels - Pg. 2
121-620-17 Fender, Repair, Top Only, Left 315.00

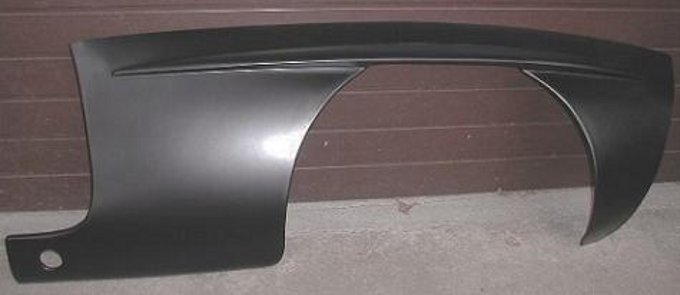

121-620-18 Fender, Repair, Top Only, Right 315.00
121-620-09 Left 3/4 Fender Patch 650.00
121-620-10 Right 3/4 Fender Patch 650.00

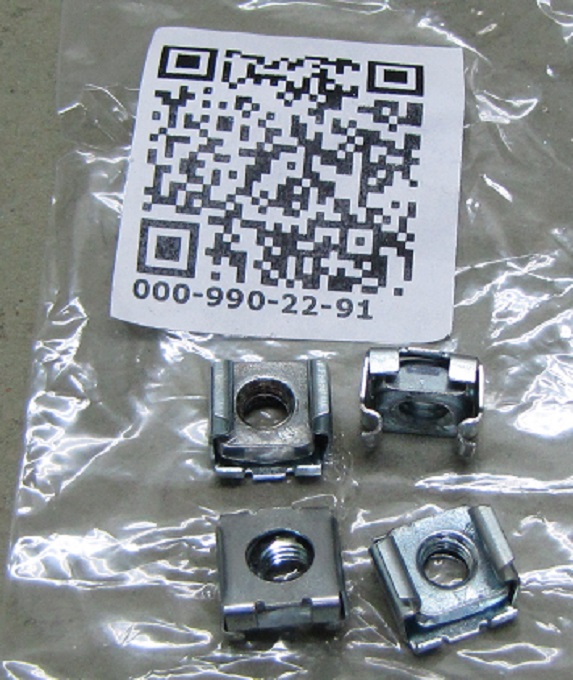

000-990-22-91 Cage Nut, Rocker Panel (Requires 4) 5.00

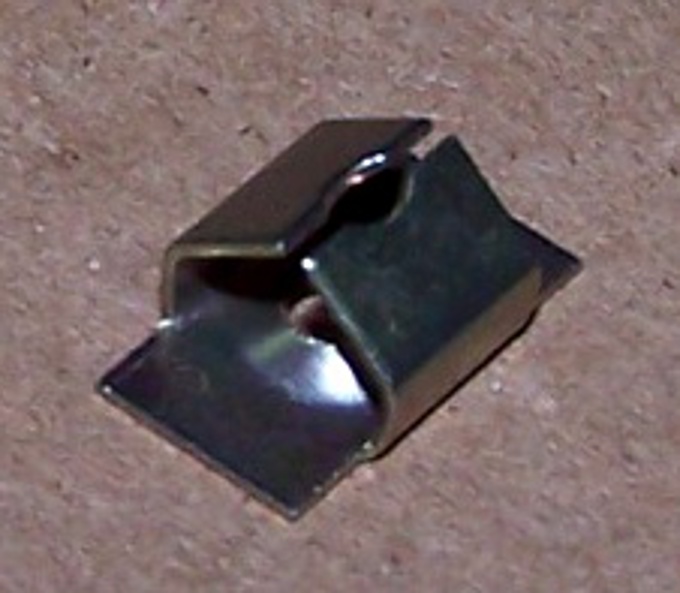

000-994-13-45 Nut, Push-In Grille Screen Mounting (Requires 10) 1.50

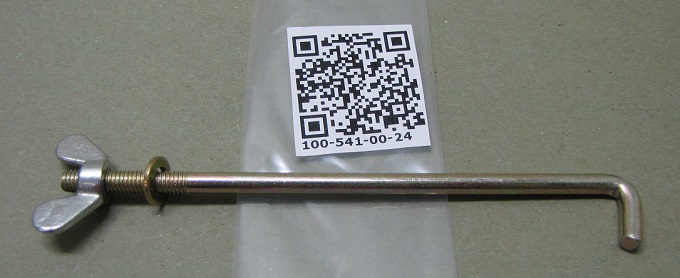

100-541-00-24 Rod, Battery Hold Down (Requires 2) 9.20
110-884-00-98 Seal, Shield to Fender 8.70
111-540-00-23 Battery, Hold Down, Frame 81.60

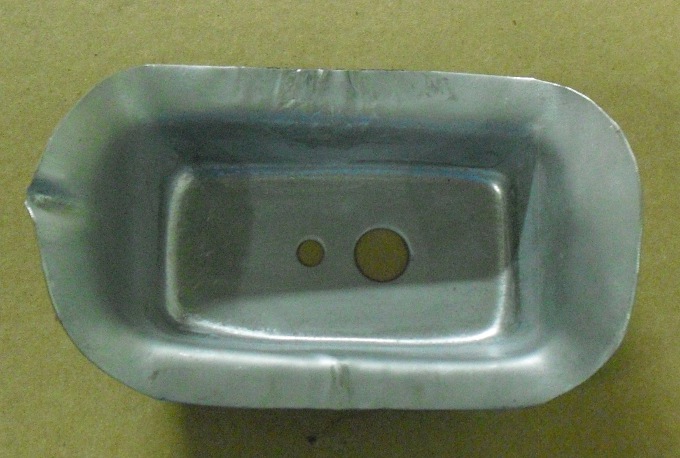

120-882-00-24 Cannister, Tail Lamp: Reproduction 54.33
121-620-00-01 Reinforcement, Nose to Frame (Requires 2) 5.56

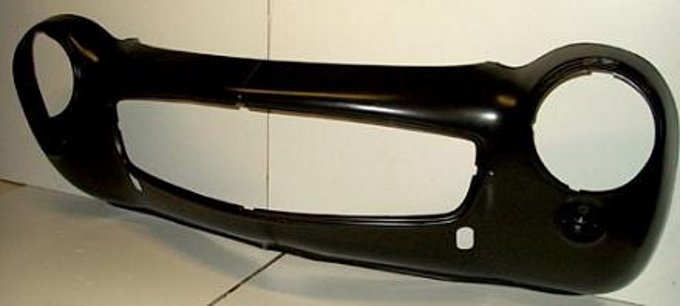

121-620-00-25 Nose Panel 4300.00
121-620-00-25R Nose Panel, Reproduction 1217.25
121-620-00-27 Cannister, Headlamp 244.00

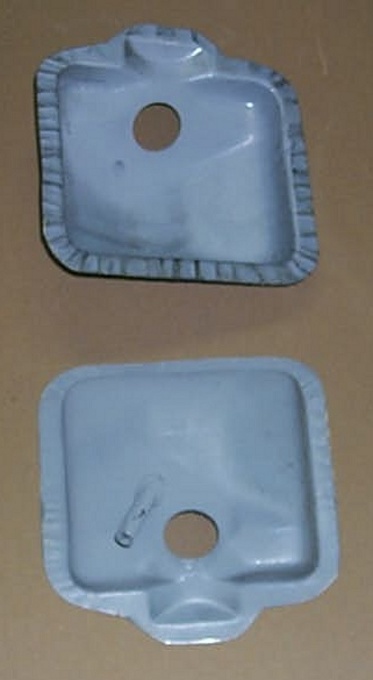

121-620-00-41 Booster Box: Reproduction 144.00
121-620-00-75 Cannister, Parking Lamp (also comes with new nose panel) 32.90

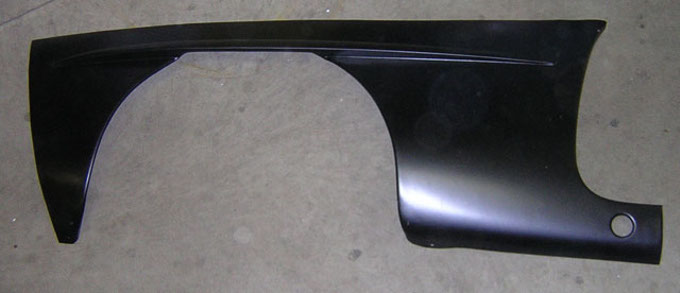

121-620-01-09 Fender, Front, Left 5142.13
121-620-01-33 Panel, Left Fender Rear Filler, At Hinges 310.00
121-620-01-59 Support, Air Intake Duct, Radiator, Left 303.95
121-620-01-61 Wheelhouse, Front, Left, 2 Pieces 1695.18
121-620-02-09 Fender, Front, Right 4678.08

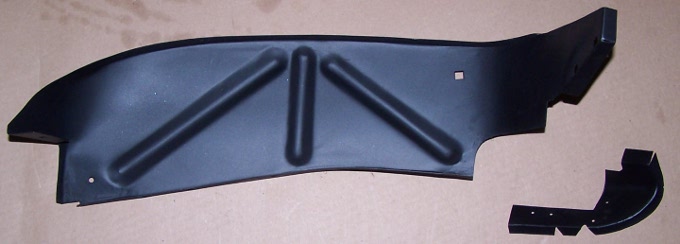

121-620-02-33 Panel, Right Fender Rear 350.65

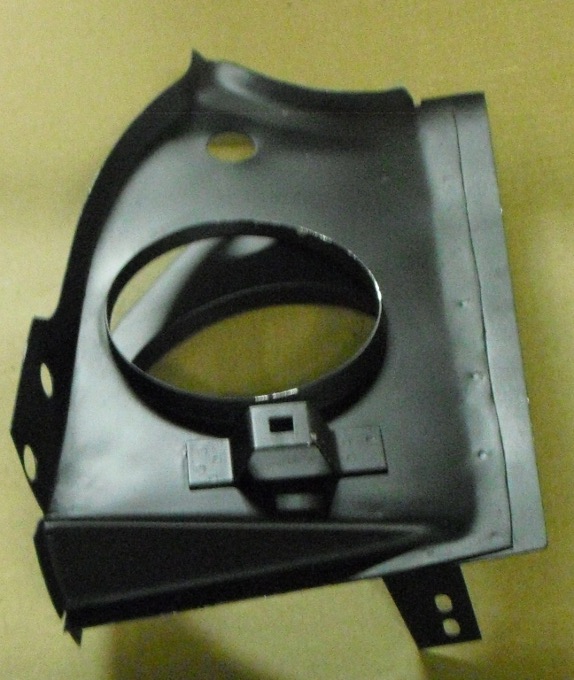

121-620-02-59 Support, Air Intake Duct, Radiator, Right 320.92
121-620-02-61 Wheelhouse, Front, Right, 2 Pieces 1400.00
121-623-00-19 Strut, Bet. Frame and Fender 10.29

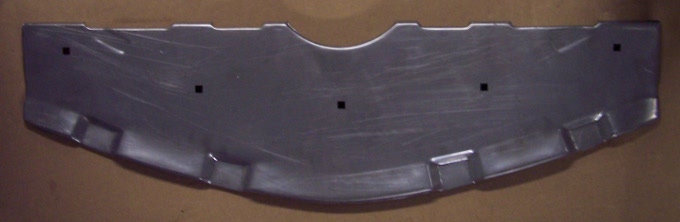

121-626-00-07 Reinforcement, Nose Panel, Lower 194.50
121-626-01-07 Reinforcement, Nose Panel, Upper 199.75
121-626-01-81 Duct, Air Intake, Left 48.16

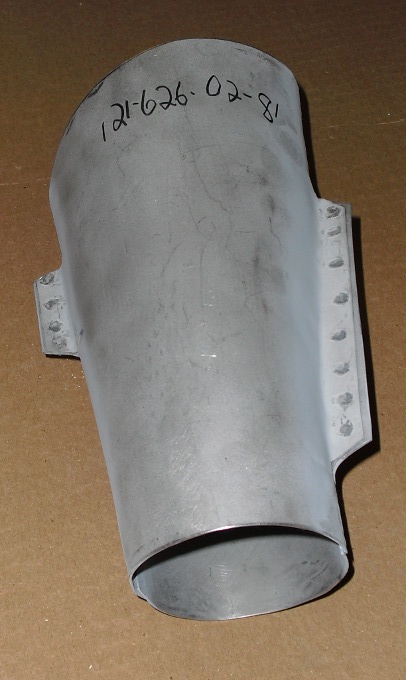

121-626-02-81 Duct, Air Intake, Right 64.83

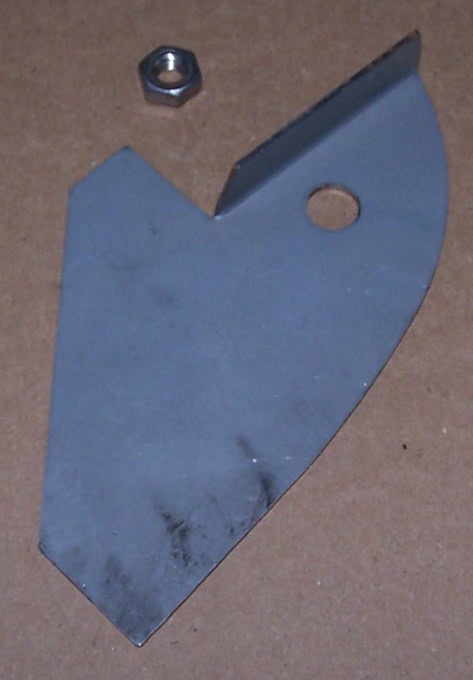

121-640-01-57 Panel, Filler, Left 15.74

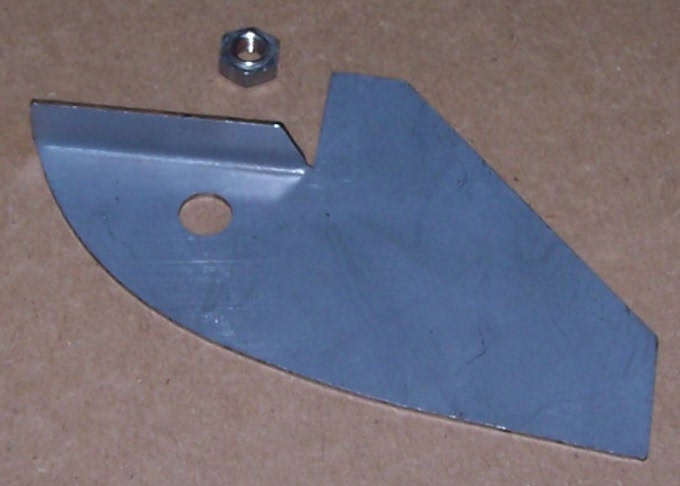

121-640-02-57 Panel, Filler, Right 15.74
121-646-01-75 Wheelhouse, Rear, Left 533.65
121-646-02-75 Wheelhouse, Rear, Right 533.65

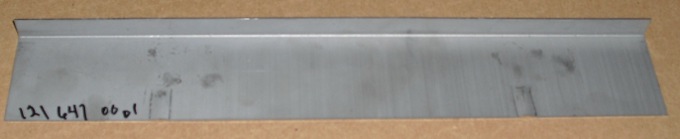

121-647-00-01 Filler Panel, Rear 1/4 to Frame 10.95
121-647-01-10 Quarter Panel, Rear, Left 5699.83
121-647-01-10P Quarter Panel Patch, Rear, Left 625.00
121-647-02-10 Quarter Panel, Rear, Right 5015.85
121-647-02-10P Quarter Panel Patch, Rear, Right 625.00
121-647-05-09 Tail Panel 689.70
121-690-00-27 Cover, Jack Hole 15.50

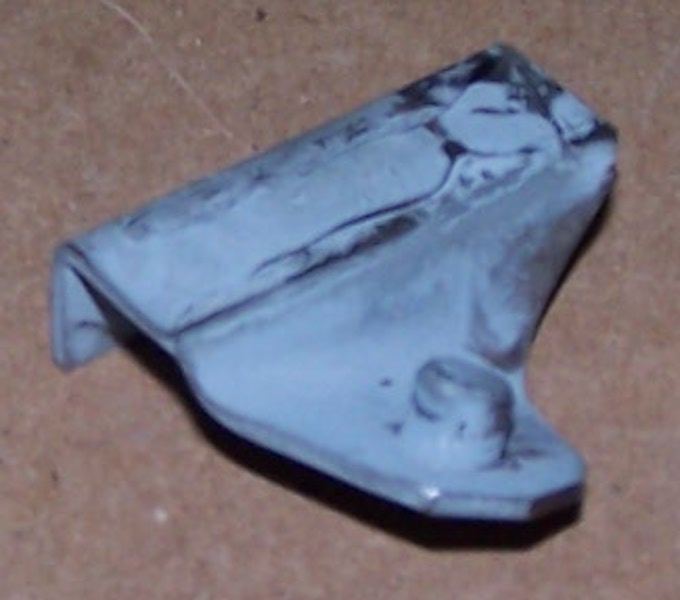

121-750-01-83 Bracket, Trunk Rod at 1/4 Panel 10.00
121-880-00-56 Hood, Used 1800.00
121-880-00-85R Grille Screen: Reproduction 290.65
121-880-01-81 Hinge, Hood, Left: Mounted on Body 204.15
121-880-02-81 Hinge, Hood, Right: Mounted on Body 204.15
121-880-03-43 Shield, Fender, Dirt and Mud, Left: Reproduction 70.10
121-880-04-43 Shield, Fender, Dirt and Mud, Right: Reproduction 70.10

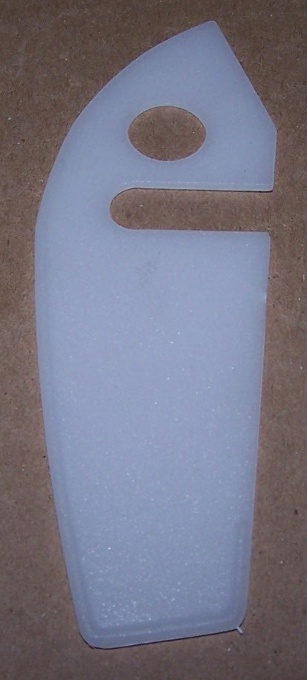

121-883-00-91 Gasket, Between Rocker Panel and Body (Requires 4) 11.00
121-883-01-01 Rocker Panel, Left 345.00
121-883-02-01 Rocker Panel, Right 345.00

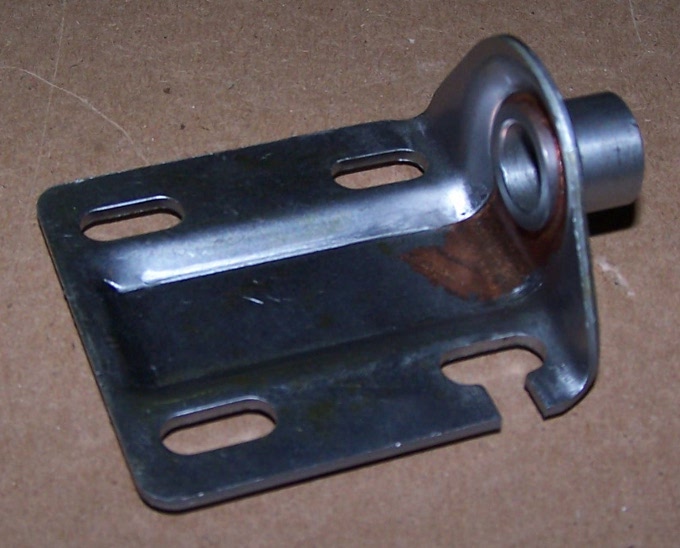

198-880-01-76 Hinge, Hood, Mounted on Hood 67.50
621-15 Battery Box: Reproduction 77.00
641-21A Patch Panel, Ahead, W/O, Left 253.15
641-21B Patch Panel, Eyebrow, Left 166.70
641-21C Patch Panel, Behind, W/O, Left 253.13
641-22A Patch Panel, Ahead, W/O, Right 253.13

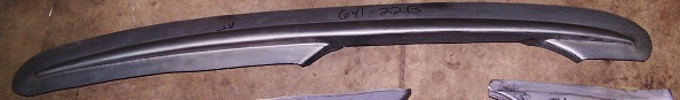

641-22B Patch Panel, Eyebrow, Right 166.70
641-22C Patch Panel, Behind, W/O, Right 253.15

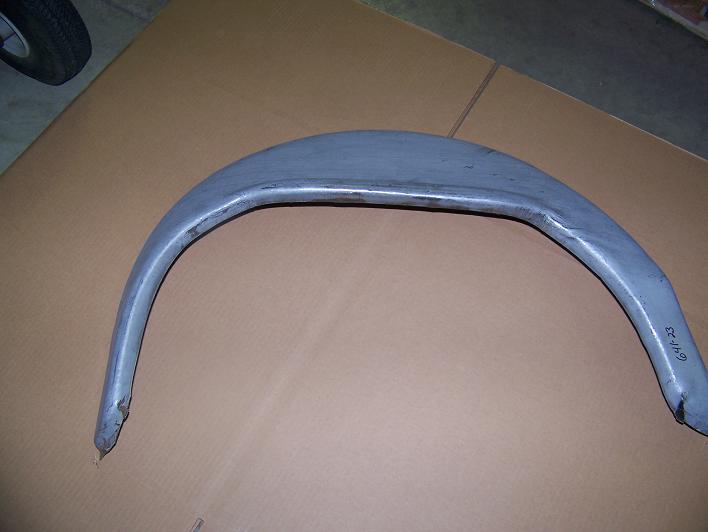

641-23 Wheelhouse Patch, Left 240.79
641-24 Wheelhouse Patch, Right 240.79

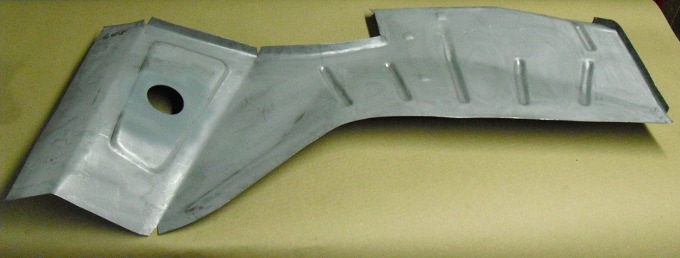

641-8 Wheel Arch, Rear Panel, Left 203.74
641-9 Wheel Arch, Rear Panel, Right 203.74
121-620-09 Fender Patch 3/4, Left 650.00
121-620-10 Fender Patch 3/4, Right 650.00
121-620-11 Fender Patch, Front of Wheel, Left 78.40
121-620-12 Fender Patch, Front of Wheel, Right 78.40
121-620-13 Fender Eyebrow Patch, Front Left 218.00
121-620-14 Fender Eyebrow Patch, Front Right 218.40
121-620-15 Fender Patch, Behind Wheel, Left 253.13
121-620-16 Fender Patch, Behind Wheel, Right 253.13

190SL - Exhaust and Air Cleaner - Pg. 3
000-094-04-79 Seal Ring, Rubber, Air Cleaner 33.60
000-094-91-02 Air Cleaner Assembly 2670.00
115-142-05-80 Gasket, Intake and Exhaust Mainfolds 15.00
120-155-06-82 Bushing Kit, Strut to Block Mounting 20.60
120-155-07-82 Mount Kit, Exhaust Bracket 42.30
120-987-00-39 Buffer, Rubber, Exhaust Pipe to Right Floor 34.70
121-000-01-10 Exhaust System: Galvanized (Comes with front pipe resinator and muffler, bracket sold seperately) 500.00
121-000-02-10 Exhaust System: Stainless 1075.00

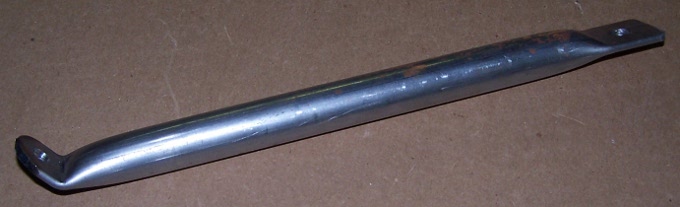

121-094-00-43R Strut, Support Rod, Carbs and Air Intake 35.10

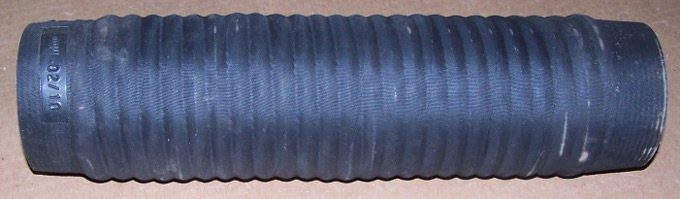

121-094-01-82 Hose, Air Cleaner Intake to Silencer 148.85
121-140-00-00 Manifold End Repair Section 220.00

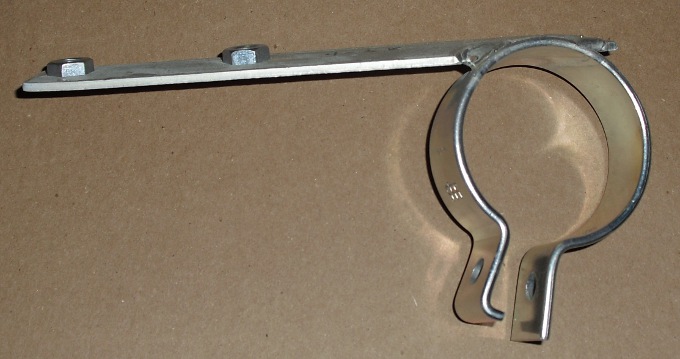

121-140-00-40 Hanger, Front Exhaust Pipe, From # 6503207 110.80
121-140-05-14 Manifold, Exhaust, From # 6503207: Reproduction 697.37

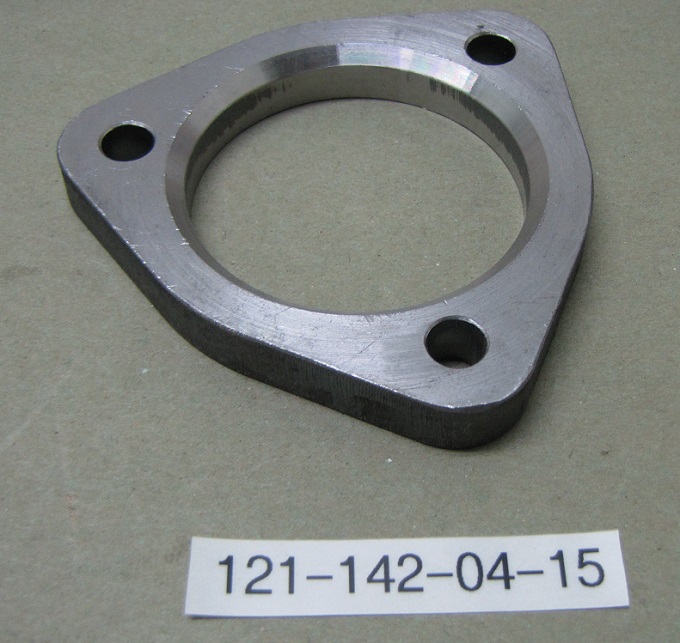

121-142-04-15 Flange, Exhaust Pipe Front, From # 6503210 64.95
121-490-02-15 Exhuast Pipe, Center, W/ Resonator 256.37
121-490-02-15R Exhaust Pipe, Center, W/ Resonator: Galvanized 210.00
121-490-06-20 Exhaust Pipe, Front, From # 9503210 375.00
121-490-06-20R Exhaust Pipe, Front, From # 9503210: Galvanized 115.00
121-490-07-35 Hanger, Front Exhaust Pipe, To # 6500196 100.43
121-492-00-14 Chrome Pipe Tail Extension 50.00
121-492-00-80 Seal Ring, Exhaust, Up to # 6503209 5.62
121-492-02-16 Support, Exhaust Manifold Bracket: Used 50.15
128-490-00-37 Hanger Kit, Exhaust Less L/Bracket 58.25
128-490-01-37 Hanger Kit, Exhaust with L/Bracket 207.35
180-491-08-01R Muffler, Rear: Galvanized 200.00
180-491-08-01 Muffler, Rear 250.00
180-491-08-01R Muffler, Rear Repro 200.00
188-492-01-81 Seal Ring, Exhaust, From # 6503210 17.85
91-1A Snorkel Tube, Air Cleaner: Exc. Reproduction 70.00

190SL - Front Suspension - Pg. 4
000720-032206 Bearing, Wheel Ft. Inner 30.55
113-323-01-85 Bushing, Sway Bar Mounting 25.05
110-411-01-71 Bolt, Shaft to Joint (Requires 3) 23.50
110-411-00-71 Bolt, Trans to Joint, From # 6500173 (Requires 3) 23.60
108-410-01-15 Joint Kit, 90mm, including Bolts, Washers, Nuts 225.00

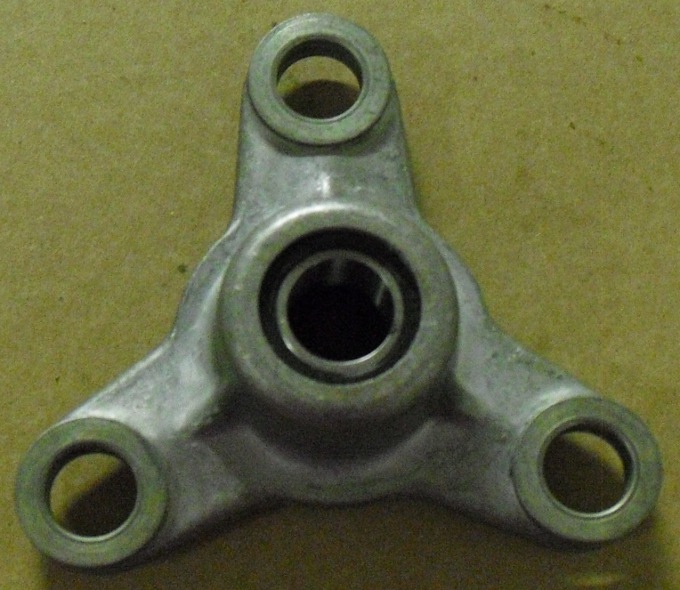

111-410-01-30 Yoke, Centering Cross, 90mm, From # 6500173 194.25

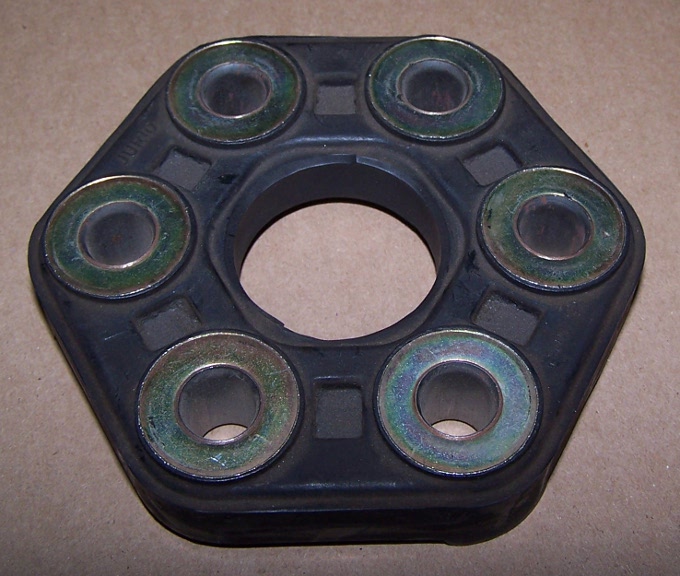

180-411-05-15 Joint, Rubber, 80mm Hole, Up to # 6500172 87.65
180-411-06-15 Joint, Rubber, 90mm, From # 6500173 84.15
180-410-01-31 Universal Joint, Shaft, To # 7500982 167.11
111-410-00-31 Universal Joint, Shaft, From # 7500983 39.35
120-333-01-80 Seal, Control Arm, Inner (Requires 8) 3.40
120-333-02-48 Inner Control Arm Bushing 28.88
120-333-03-48 Inner Control Arm Bushing 25.41
121-321-04-04R Reproduction Front Spring CALL
121-586-00-33 Repair Kit, Lower Control Arm, Inner 275.52

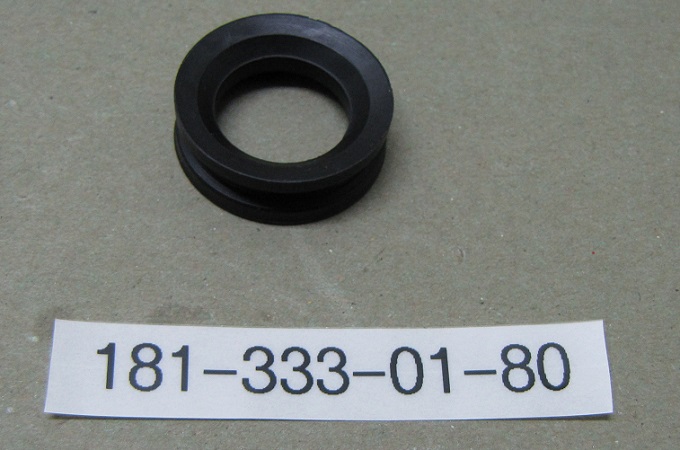

181-333-01-80 Seal, Control Arm, Outer (Requires 8) 12.55
111-586-00-33 King Pin, W/ Bushings and Seals 247.50
110-330-03-18 Repair Kit, Lower Control Arm, Outer 80.00
111-333-02-65 Buffer, Rubber, Lower, Control Arm (Requires 4) 11.40

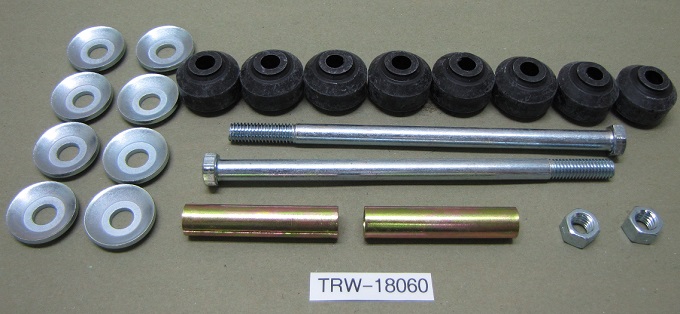

TRW-18060 Bolt Kit, Bar Mount (does the whole car) 26.90
108-413-01-12 Mount, Shaft Center 20.90
003-981-23-25 Bearing, Drive Shaft, Center 32.00
128-586-01-33 Repair Kit, Upper Control Arm, Inner (Requires 2) 374.08
110-330-02-18 Repair Kit, Upper Control Arm, Outer (Requires 2) 46.45
000-981-58-05 Bearing, Inner, W/Cup, From # 021755 21.50
000-720-032303 Bearing, Outer, W/Cup, To # 021754 52.60
000-981-59-05 Bearing, Outer, W/Cup, From # 021755 28.50
111-334-00-64 Plate, Ring, Bearing to Seal, To # 021754 183.35
180-334-01-64 Plate, Ring, Bearing to Seal, From # 021755 46.30
180-334-00-62 Retainer, Bearing, Left 98.00
180-334-01-62 Retainer, Bearing, Right 98.00
120-990-13-20 Bolt, Cap Screw, Locking Nut 41.75
120-334-07-72 Nut, Bearing Locking 54.45

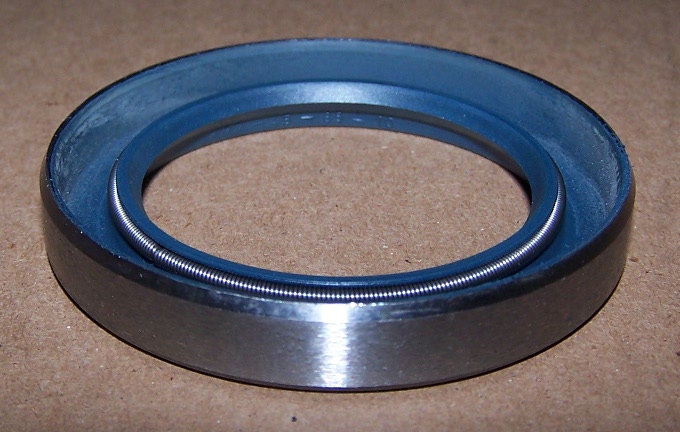

000-997-18-46 Seal, Front Bearing, To # 021754 35.40
002-997-82-46 Seal, Front Bearing From # 021755 12.00

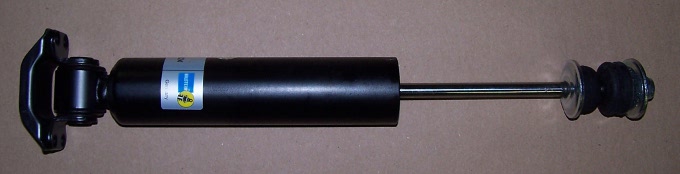

180-323-05-00 Shocks, Front, Bilstein Gas 206.75

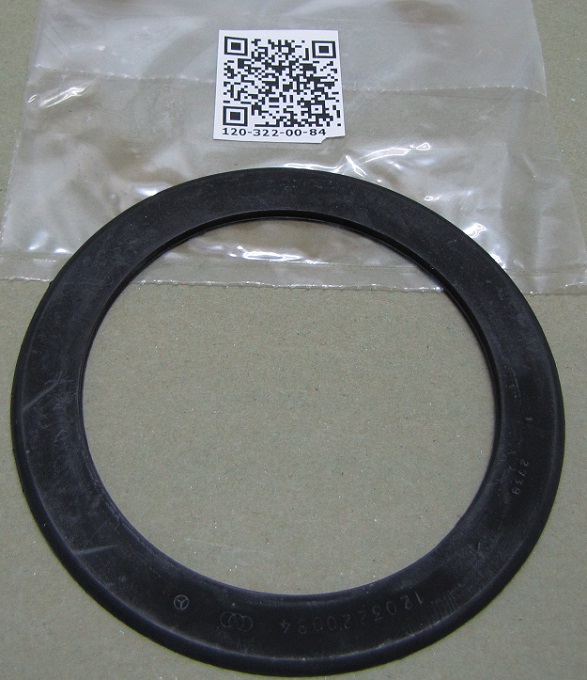

120-322-00-84 Washer, Rubber, Front Springs, Top (Requires 2) 26.35

190SL - Steering, Front Subframe - Pg. 5
000-330-04-85 Boot Kit 8.00
000-338-52-10 Tie Rod End, Right Hand Thread 25.00
000-338-50-10 Tie Rod End, Left Hand Thread 25.00
000-462-07-30 Lock, Steering, W/Keys, 38mm 270.00
000-462-08-30 Lock, Steering, W/Keys, 34mm 270.00
000-463-16-32 Shock, Steering, To # 5501501 492.95
000-463-17-32 Shock, Steering, From # 5501502 170.65
000-463-17-32R Shock: Reproduction 80.00
000-464-00-39 Lever, Pivot, Cancelling 17.45

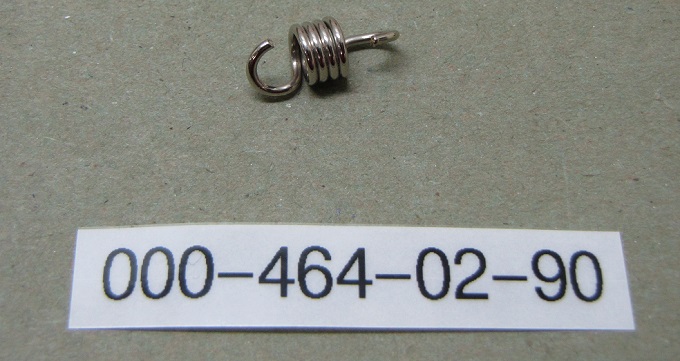

000-464-02-90 Spring, Release 18.35
000-464-04-17 Contact Plate 150.00

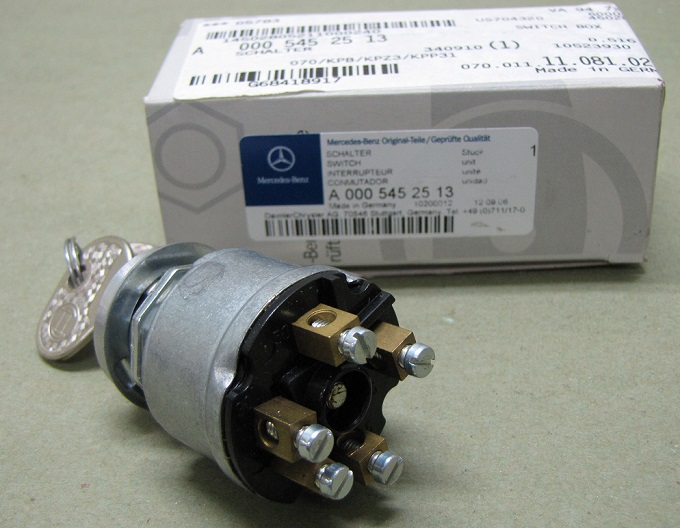

000-545-25-13 Switch, Ignition, W/Keys, Non-Lock 119.50
000-997-48-46 Seal, Gear Box, Lower, Up to # 021119 9.90
002-997-47-46 Seal, Box at Shaft 19.10

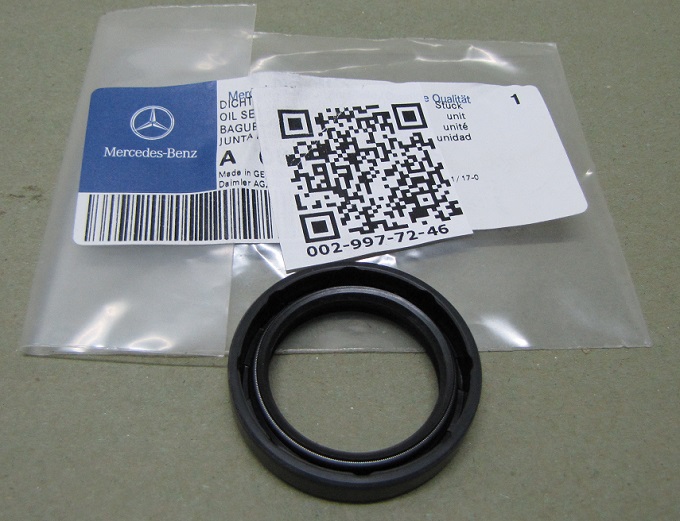

002-997-72-46 Seal, Gear Box, Lower, From # 021120 51.72
006503-018100 Seal, Idler Arm 20.00
107-993-04-10 Spring, Brake, Return 6.90
112-333-01-65 Bumper, Upper Control Arm 14.65
120-292-05-50 Bushing, Pedal Pivot (Requires 2): Used Only 110.75
120-330-09-03 Tie Rod Assembly 95.20
120-333-04-53 Spacer Sleeve 13.85
120-333-19-65 Mount, Sub Frame 11.15
120-338-02-15 Tube, Tie Rod 55.98

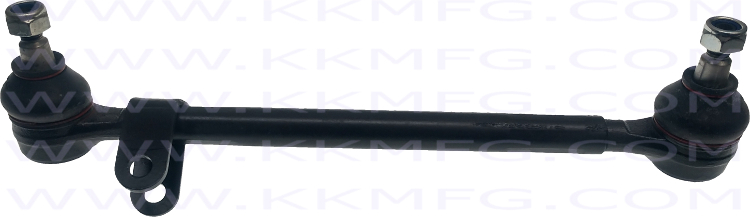

120-460-13-05 Drag Link, Up To # 5501501 186.15
120-460-15-05 Drag Link, From # 5501502 CALL
120-461-05-80 Gasket, Strg. Box Cover 16.35

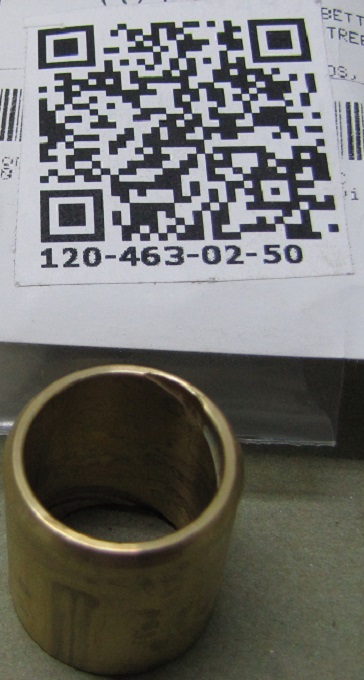

120-463-02-50 Bushing, Idler Arm 30.10
120-990-14-01 Bolt, Sub-frame Mounting 5.99
120-994-00-13 Lock Plate 7.45
121-301-01-82 Pad, Accelerator Pedal: Reproduction 34.50
120-460-13-05 Drag Link, To # 5501501 186.15

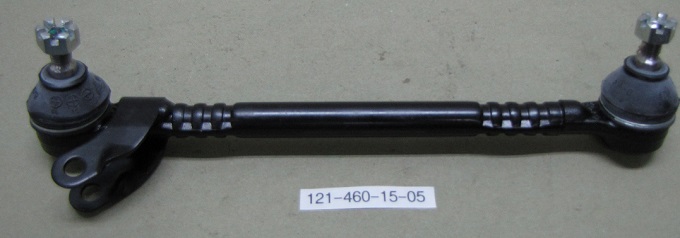

121-460-15-05 Drag Link, From # 5501502 96.20

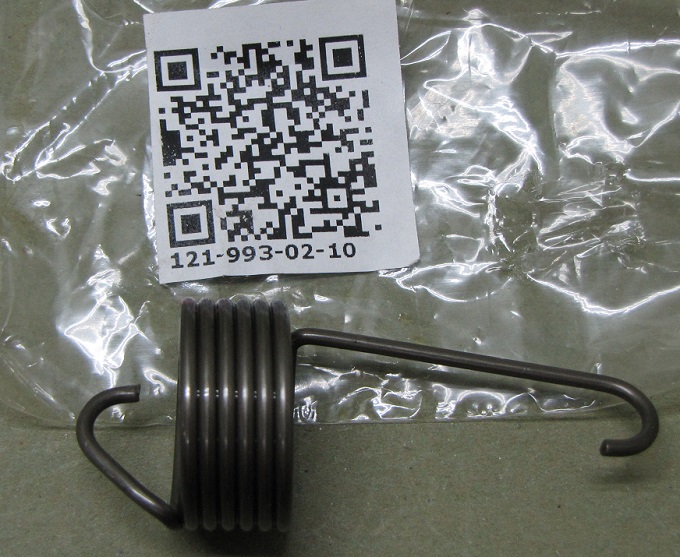

121-993-02-10 Spring, Clutch Return 21.25
153-464-00-23 Insulating Plate 9.90
153-464-00-72 Castle Nut, Horn Ring 50.49

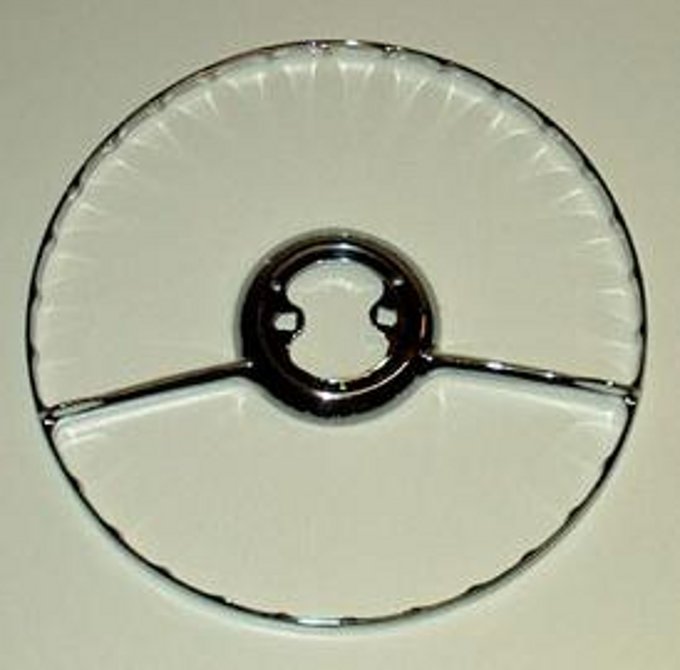

180-460-00-40 Horn Ring 466.00
180-460-00-40R Horn Ring - Repro 291.20
181-333-01-65 Mount, Rubber, Rear Sub-frame (Requires 2) 58.15
181-464-00-28 Washer, Contact 49.00
181-464-01-86 Contact Cup 29.04
182-464-00-62 Washer, Copper Ring For Horn 32.67
186-460-08-03 Steering Wheel, Black 745.00
186-460-09-03 Steering Wheel, Ivory 1275.00
186-993-37-01 Spring, Pressure 8.51
187-460-01-44 Horn Button, Black 300.00
187-460-02-44 Horn Button, Ivory 369.50
198-540-00-38 Ground Strap, Steering Column 14.20
318-586-00-31 Repair Kit, Front Suspension 328.33
319-292-00-82 Pad, Pedals (Requires 2) 4.95

190SL - Rear Suspension/Axle - Pg. 6
000-981-05-06 Bearing, Rear Axle (click for optional version) 160.90
000-981-16-01 Bearing, Pinion, Rear 126.55
000-997-13-46 Seal, Axle Pinion Gear 20.00
000-997-81-47 Seal, Rear Axle, Inner 8.55
000-997-88-47 Seal, Rear Axle, Outer 13.05
001-981-15-25 Bearing, Rear Axle (No Tapers) 36.09
110-350-06-33 Stud Mount 304.00
110-352-00-67 Plate, Stud Mount Bottom 15.95
110-352-10-65 Bushing, Trailing Arm 16.70
110-352-00-67 Retainer, Trailing Arm to Stud 15.95
110-357-03-91 Boot, Rear Axle (Split) 68.70
110-357-04-91OR Boot, Rear Axle, Original (Solid) 49.10
110-357-04-91 Boot, Rear Axle (Not Split) 56.26
110-357-05-91 Clamp Kit, Split Boot 20.60
111-350-02-75 Bushing, Rear Axle Pivot 143.30
111-352-00-65 Bushing Kit, Trailing Arm Mounting 28.22
111-410-00-31 U-Joint, D/Shaft, From # 750098 39.35
120-350-00-66 Nut, Yoke to Pinion 46.10
120-352-07-65 Bushing, Rubber, Trailing Arm to Axle 16.15
120-357-01-79 Gasket, Backing Plate, To Axle Housing. 15.50
120-401-01-71 Bolt, Wheel (Requires 20) 40.00
120-990-00-01 Bolt, Arm to Rear Axle 59.50
120-990-00-59 Nut, Wheel (Requires 20) 5.50
120-990-09-20 Stud, Trailing Arm, Long 32.45
120-990-10-20 Stud, Trailing Arm, Short 34.05
120-994-00-44 Lock, Nut to Gear 20.90
120-994-04-12 Lock Plate, Trailing Arm to Axle 16.50
121-324-18-04 Spring, Rear Left: Original 161.55
121-324-19-04 Spring, Rear Right: Original 161.55
153-357-00-26 Nut, Axle Shaft Mounting 17.55
180-320-01-44 Bumper, Rear Axle (Requires 2) 100.00
180-325-00-52 Spacer Ring, Top, Rear Spring: Used 66.00
180-325-01-44 Mount, Rear Spring, Top 47.30
180-325-03-15 Retainer, Rear Spring, Top: Used 115.00
180-325-04-15 Retainer, Bottom For Rear Spring: Used 43.56
180-326-04-00 Shocks, Rear, Bilstein Gas 173.00
180-350-09-32 Differential 550.00
180-351-00-48 Bushing, Rubber, Cross Shaft to Axle 33.20
180-351-01-50 Bushing, Axle Arm (Requires 2) 49.05
180-351-01-53 Bushing, Front Axle Pivot (Requires 2) 76.35
180-351-03-73 Lock Plate, Axle Mount 6.30
180-351-05-86 Bushing, Rubber, Axle Mount Bottom 82.60
180-351-07-44 Bushing, Rubber, On Axle Cross Shaft 44.40
180-351-08-86 Mount, Rubber, Rear Axle, To # 7503365 151.80
180-351-09-86 O-Rings, Rear Axle Pivot, Retains, Grease (Requires 4) 6.20
180-351-10-86 Mount, Rubber, Rear Axle, From # 7503366 134.78
180-997-04-30 Bolt, Rear Axle Pivot Rod 24.55
183-353-03-73 Lock Plate, Axle Mounting 18.60

190SL - Brakes Fig. #1 - Pg. 7
000-420-08-55 Bleeder Screw, Wheel Cylinder 11.55
001-420-04-18 Cylinder Wheel Rear, All Years 88.90
001-420-33-18 Cylinder, Wheel, Front, Left, From # 021835 108.40
001-420-34-18 Cylinder, Wheel, Front, Right, From # 021835 110.45
007603-010110 Seal Ring, Brake Lines 1.40
110-420-10-10 Shoe Set, Relined, Front 160.00
110-420-20-20 Shoe Set, Relined, Rear 150.00
110-421-02-18 Bolt, Shoe to Wheel Cylinder 22.69
110-993-12-10 Spring, Shoe Ret., Right, To # 024160 10.75
110-993-12-10 Spring, Shoe Ret., Rear, From # 024161: Takes 2 10.75
110-994-01-16 Lock Plate 8.75
120-423-01-56 Washer, Rear Shoe Mount, Rectangular Hole 17.60
120-990-06-40 Washer, Between Shoe and Spring 1.85
120-990-07-40 Washer, Flat, Pivot Pin, Rear Shoes, To # 021834 16.50
120-990-07-40 Washer, Flat, Shoe Mount 16.50
120-993-07-01 Spring, Rear Shoe Mounting 26.35
136-423-00-92 Spring, Emergency Brake Switch 8.90
180-420-07-29 Line, Brake, Left Front Wheel 315.60
180-420-08-28 Line, Brake, Between Front Cylinder 247.50
180-420-08-29 Line, Brake, Right Front 500.00
180-421-00-74 Pin, Adj., Guide, From # 5500131 12.00
180-421-01-32 Washer, Friction Disc, Against Shoe 9.55
180-421-01-37 Sleeve, Adj., Threaded, From # 5500131 23.05
180-421-01-71 Pin, Threaded, Adj., To # 5500130 108.90
180-421-03-71 Screw, Adj., Tension, From # 5500131 10.75
180-421-06-71 Pin, Threaded, Adj., From # 5500131 58.95
180-423-02-74 Pin, Guide, Rear Adj., From # 5500168 6.40
180-423-05-50 Sleeve, Adj., Rear, From # 5500131 40.00
180-990-13-40 Shim, Adj., From # 5500131 9.40
180-990-24-40 Washer, Steel, Brake, Adj.:Used 6.30
180-993-11-10 Spring, Shoe Ret., Left, To # 024160 66.00
180-993-23-01 Spring, Adj., Pin, From # 5500131 31.25
180-993-25-10 Spring, Shoe Ret, From # 7502127 12.20
194-993-00-01 Spring, Adj. Tension, From # 5500131 8.45
M12X1.5X14 Bolt, Cylinder Front 1.39

190SL - Brakes Fig. # 2 - Pg. 8
000-420-16-55 Bleeder Screw, Master Cylinder, From # 8501755 10.45
000-428-00-26 Hollow Bolt, To Adapt Stop Switch to Booster 8.55
000-428-03-73 Retainer, Spring Clip, B-Hose to Line 4.00
000-428-19-24 Y-Fitting, To Adapt Stop Switch to Booster 26.35
000-428-29-35 Hose, Front Brake Cylinder 16.50
000-428-30-35 Hose, Brake, Left Rear 16.00
000-428-31-35 Hose, Brake, Right Rear 16.75
000-428-36-24 Distributor, Rear Brake, From # 7500855 93.90
000-430-21-30 Booster Assembly: New 1850.00
000-430-21-30R Booster Assembly: Rebuilt 625.00
000-430-61-01 Cylinder, Master, To # 6501956, From # 6501957 to 8501754 336.20
000-430-72-01 Cylinder, Master, From # 8501755, Use W/ Y-fitting and Hollow Bolt at Booster 315.90
000-431-47-02 Reservoir, Brake Fluid, Plastic 56.30
000-435-01-07R Booster Inside Diaphragm 230.40
000-545-61-09 Brake Light Switch 30.85
000-586-00-30 Seal, Kit Fiber Vac. Line Adapter: Takes 2 10.00
002-997-67-82 Hose, Reservoir to Cylinder, Line 4.15
108-427-00-72 Nut, Brake Cable Adj. (This is made as a straight nut, no longer with wing style) 9.98
121-420-00-32 Line, Main Brake, To # 6501956 57.75
121-420-00-85 Cable, Front Emergency Brake 22.40
121-420-01-85 Cable, Emergency Brake, Intermediate 181.30
121-420-02-26 Line, Master Cylinder to Booster 11.05
121-420-02-28 Line, To Right Front Wheel 70.78
121-420-03-26 Line, Booster Output, to Serial # 8501754 14.60
121-420-16-26 Line, Booster Output, From # 8501755 26.50
123-420-56-28 Line, Left Front, All 20.00
123-420-57-28 Line, Brake, Left Rear 20.00
123-420-58-28 Line, Brake, Right Rear 20.00
123-420-58-28 Line, Brake, Rear Dist. To Right Hose 20.00
123-420-76-28 Line, Main Brake 53.55
128-586-00-42 Rear Brake Line, Left 421.75
128-586-01-42 Rear Brake Line, Right 421.75
180-420-01-30 Line, Brake, Right Rear, To # 7500147 297.00
180-420-02-30 Line, Brake, Left Rear, To # 7500147 297.00
180-420-03-28 Line, Metal Reservoir to Cylinder 261.40
180-420-03-90 Case, Cable Pulley, Left 441.40
180-420-04-90 Case, Cable Pulley, Right 441.40
180-420-10-85 Cable, Rear Emergency Brake 186.60
180-420-12-28 Line, Plastic Reservoir to Cylinder 110.70
180-993-14-10 Spring, Emergency Brake Release 34.00
186-995-02-20 Clamp, Cables and Lines to Body 9.82

190SL - Clutch and Trans - Pg. 9
010-250-12-03 Clutch Disc 181.50
000-545-06-06 Switch, Backup Lamp 306.75
000-981-18-10 Bearing, Pedal Shaft 10.00
001-990-01-51 Nut, Shfit Rod at Trans 12.65
107-993-04-10 Spring, Brake Return 6.90
110-250-00-15 Bearing, Clutch, W/Sleeve 360.95
111-261-01-79 Gasket, Trans Cover, From # 025118 14.70
111-267-00-74 Bolt, Shift Rod, At Trans 38.50
111-267-00-83 Bushings, Shift Linkage at Transmission 10.55
111-267-00-86 Bushing, Shift Lever 12.75
111-268-09-42 Know, Shift, Push On, From # 8500310 49.50
113-262-00-34 Synchro Ring, Transmission (Requires 4) 34.40
120-254-00-97 Boot, Clutch Throw Out Lever 8.75
120-290-00-33 Bracket, Pedal Support 109.72
120-291-02-88 Boot, Pedal Shaft (Requires 2) 40.25
120-291-03-88 Boot, Pedal Shaft (Inner) 11.25
120-292-05-50 Bushing, Pedal Pivot (Requires 2) 110.75
120-586-02-26 Gasket and Seal Set, Transmission 112.55
121-254-00-10 Bearing, Clutch Throw Out 132.80
121-290-00-21 Support, Swivel 132.50
121-290-09-39 Pull Rod, Clutch 575.00
121-301-01-82 Pad, Accelerator Pedal: Reproduction 34.50
121-993-00-26 Spring Plate, Pivot Ball 36.30
121-993-02-10 Spring, Clutch Return 21.25
180-250-07-04 Clutch Pressure Plate 239.25
180-293-00-76 Screw, Clutch, Adjustment Nut is 10mm 85.00
180-293-01-11 Lever, Clutch Throw Out Bearing 75.00
186-988-00-10 Bushing, Clutch Rod 77.35
186-991-00-29 Ball, Shaft Pivot 78.00
198-268-00-42 Knob, Shift, Threaded, To # 8500309 36.15
198-268-01-50 Bushing, Shift Rod at Lever 8.00
198-268-01-57 Cover, Lever, Chrome 55.75
198-268-01-96 Boot, Shift Lever 18.50
198-990-00-48 Washer, Spring 15.95
319-292-00-82 Pad, Pedals (Requires 2) 4.95
77502 Bearing, Crank Pilot 22.00

190SL - Electrical and Wiring - Pg. 10
1497 Wire Harness, Eng, Headlights, Dash, Key Start 1615.00
1498 Wire Harness, Body Mount 513.60
1499 Wire Harness, Gen. 39.60
2402 Wire Harness, Rear, W/ Bumper Mounted Lic. Lts. 501.20
2403 Wire Harness, Steering Column, Horn 146.05
2674 Wire Harness, Rear, W/Body Mounted Lic. Lts. 58.20
3229 Wire Harness, Eng, Headlights, Dash, Push Button 1615.00
77502 Bearing, Generator, Front and Rear (Requires 2) 22.00
000-151-07-50 Bushing, Starter Front 11.65
000-151-08-50 Bushing, Starter Rear 4.90
000-151-20-13 Gear, Starter Drive 280.00
000-151-27-14 Brush Set, Starter Motor 36.95
000-151-81-01R Starter Motor, Reb. Exch. 350.00
000-152-08-11 Solenoid, Starter 179.70
000-154-27-14 Brush Set, Generator 16.35
000-154-58-02R Generator, Rebuilt (Exchange) 250.00
000-156-71-01 Condenser, Ignition Distributor (all 190SL distributors) 8.70
000-158-00-03 Coil, Ignition 49.50
000-158-06-02 Cap, Dist., W/Cut on Edge (For VJR4BR24, VJ4R4BR25, VJ4BR11, VJ4RBR27, VJR4BR29) 31.35
000-158-06-90 Points Set (For VJR4BR24, VJ4BR11, VJ4RBR27, VJ4BR12) 20.00
000-158-07-90 Points Set (For VJ4R4BR25) 36.00
000-158-15-90 Points Set, VJR-4-BR, From 1963 7.65
000-158-20-31 Rotor, Ignition-Dist. (all 190SL distributors) 25.00
000-158-24-02 Cap, Distributor (For VJ4BR12) 48.70
000-158-89-01 Distributor, Early: Used 170.55
000-158-89-02 Repair Kit, Distributor 170.50
000-545-02-03 Cover, Fuse Box 85.40
000-546-18-41 Junction Block, 2 Wire, Exposed 50.00
000-821-06-52 Switch, Dome Lamp, From # 5500912 84.40
001-154-46-06 Voltage Regulator 136.95
002-158-02-01 Distributor, Late, Vac-Advance: New 382.20
120-155-03-82 Bushing Set, Gen Mount, To # 015137 79.65
120-155-04-82 Bushing Set, Gen Mount, From # 015138 105.60
120-987-00-37 Grommet, Early Headlight, Inner Fender 41.75
121-150-03-19 Wire Set, Spark Plugs 49.50
121-155-00-72 Nut, Generator Adjusting 14.00
121-155-02-28 Clamp, Gen. Adjusting 22.40
121-155-13-23 Generator Adjusting Rod (fr 015138) CALL
121-542-16-07 Cable, Tachometer 47.30
121-542-19-07 Cable, Speedometer, LHD 52.15
180-050-05-06 Gear, Distributor Drive 196.98
186-540-03-41 Ground Strap, Starter to Firewall 16.16
186-545-02-89 Gasket, Fuse Box Cover 20.00
602-301-02 Bushing, Distributor 5.71
602-650-04 Spring, Distb, Advance 5.80
BFU834A Cable, Positive Battery 89.10
PBPUN642 Cable, Neg. Battery, From # 7500128 CALL
PBVUN642 Cable, Neg. up to 7500128 66.85
W7-DC Spark Plug 4.95
XR-700 Optional Electronic Ignition Kit 225.00

190SL - Heating and Cooling - Pg. 11
000-501-00-15 Cap, Radiator 61.00
000-501-00-65 Drain Valve 210.38
000-835-41-98 O-Ring, Water Valve 2.85
000-997-43-92 Belt, Fan and Generator 34.65
007603-008105 Seal Ring, Bypass Tube Mounting (4) 1.20
120-500-00-85 Screw, Radiator Mounting (Requires 2) 22.00
120-504-01-82 Mount, Radiator (Requires 4) 4.95
120-830-00-36 Lever, Heat Control, to # 020157 64.00
120-835-00-92 Gasket, Right Heater Box to Body 28.90
121-200-01-58 Tube, Water Bypass, To # 8501222 449.63
121-200-02-20 Water Pump, After Market, From # 8501222 170.00
121-200-02-54 Pipe, Water Return 57.50
121-200-03-15 Thermostat Housing Block 638.90
121-200-05-15 Thermostat 13.30
121-200-13-20 Water Pump, Mb Orig. 323.52
121-200-29-01 Kit, Water Pump, Rebuild Original Pumps Only 107.10
121-203-01-74 Cover, Thermostat 41.80
121-203-01-80 Gasket, Thermostat (Requires 2) 8.10
121-500-02-91 Tube Water Distribution 95.35
121-830-00-15 Water Line Set, Feed Line and Return, Stainless 199.10
121-830-00-89 Escutcheon, Level Control 68.91
121-830-02-05 Heater Box, Right, Reproduction 529.90
121-830-09-62 Heater Box: Reproduction 753.00
121-831-00-99 Grommet, Defroster at Firewall, (Requires 2) 25.47
121-831-01-99 Gasket, Left Heater Box to Body 30.00
121-831-03-88 Hose, Air Intake to Heater, Right 81.40
121-831-04-88 Hose, Air Intake to Heater, Left: Original 152.30
121-831-04-88R Hose, Air Intake to Heater, Left: Reproduction 78.44
121-831-05-88 Hose, Defroster Duct to Heater Box 24.50
121-833-03-31 Cable, Assembly, Air Intake, Insert Only 4.60
121-833-04-31 Cable, Assembly, Heat Valve, Air Intake, Insert Only 2.91
121-833-05-31 Cable, Wire, Right Air Control 3.65
127-201-00-80 Gasket, Water Pump, From # 8501223 2.15
136-072-00-50 Nut, Wire End to Bolt 6.54
136-831-00-89 Clamp Kit, Wire End to Level 8.17
180-200-04-19 Housing Thermostat 124.75
180-200-04-58 Tube, Water Bypass, From # 8501223 29.00
180-203-08-80 Gasket, Thermostat Housing to Block 2.08
180-203-09-80 Gasket, Water Pump, Housing to Block 2.03
180-830-00-08 Motor, Heater Blower: Used Only 420.00
181-205-08-06 Fan Blade, Used 80.00
186-995-02-20 Clamp, Cables, Lines to Body 9.82
2556-10F Hose Set, Heater, 16MM 29.70
2556-8F Hose Set, Heater, 12MM 20.72
32X40X120MM Hose, Radiator Top 5.57
38X46X70MM Hose, Radiator Lower (Requires 2) 8.23
915036-005100 Screw, Hollow, Tube, Mounting (Requires 2) 4.50

190SL - Gauges and Switches - Pg. 12
000-462-03-32 key Blank, For Ignition, code 9661 15.44
000-543-03-11R Clock, Electric, 12 Volt: Replica 101.50
000-544-55-32 Relay, Signal Flasher 129.80
000-545-06-06 Switch, Back-Up Light 306.75
000-545-12-12 Switch, Head Lamp Dimmer 95.00
000-545-17-14 Switch, Push Button, Starter 125.55
000-545-25-13 Switch, Ignition, Non Locking Column 119.50
000-545-47-24 Switch, Headlight Override 208.26
000-545-61-09 Switch, Stop Light 30.85
000-825-02-52 Element, Lighter 43.60
107-869-00-19 Washer Bag Nozzle 29.00
115-825-02-53 Lighter, To # 5500138 48.16
115-869-01-21 Pump, Washer, W/ Switch 145.20
120-540-00-58 Switch, Head Lamps, Used Only 101.65
120-540-02-44 Switch, Park Night Lamp, Reversing 124.00
120-824-00-00 Wiper, Insert Only 40.00
121-820-00-43 Wiper Shaft Gear 170.00
121-820-00-43U Wiper Shaft Gear, Used 60.00
120-824-00-26 Wiper Blade 118.65
120-824-02-28 Wiper Arm 178.70
121-542-01-03R Gauge, Fuel, In Dash: Rebuilt 260.40
121-542-04-16R Tachometer: Rebuilt CALL
121-542-07-06R Speedometer, From # 5500061: Rebuilt 900.00
121-542-16-07 Cable, Tachometer 47.30
121-542-19-07 Cable, Speedometer 52.15
121-824-00-98R Seal, Wiper Shaft: Reproduction 11.80
136-824-03-99 Cap, Wiper Shaft, Chrome 33.15
180-300-18-30 Cable, Choke and Hot Start W/Switch: Used 113.11
198-542-01-05 Gauge, Temp, Degree F. 520.80
198-542-01-05R Gauge, Temp: Rebuilt 230.20
198-542-00-02R Gauge, Oil Pressure, Rebuilt 156.80
198-542-03-05 Gauge, Temp, Degree C. 376.50
VDO-200 Washer Bag Cap 15.00
VDO-BAG-02 Washer Bag, With Script 307.60

190SL - Engine Parts: Upper - Pg. 13
000-997-69-94 Chain, Engine Timing, 928 Engine 90.75
114-052-00-02 Gear, Tach and Dist Drive: Must be Altered to Fit 334.00
114-055-00-01 Rocker Arm, 928 Eng. 75.00
115-050-10-11 Tensioner, Timing Chain 355.75
115-052-04-16 Guide, Timing Chain. 921 Engine takes 3, 928 Engine takes 2 82.00
115-052-07-16 Guide, Timing Chain. 921 Engine takes 1, 928 Engine takes 2 82.00
115-142-05-80 Gasket, Intake and Exhaust Manifolds 15.00
121-010-08-80 Gasket Set, Head and In. Upper 135.00
121-010-09-80 Gasket Set, Eng. Lower 110.00
121-016-01-80 Gasket, Value Cover 26.40
121-016-06-60 Dist., Water, From # 7501735, All Eng. (Takes 2) 15.90
121-016-07-60 Dist., Water, 921 Eng. (Takes 4) 9.30
121-016-08-60 Dist., Water, From # 7501735, All Eng. (Takes 4) 10.15
121-016-09-60 Dist., Water, 921 Eng. (Takes 4) 10.15
121-016-34-20 Gasket, Cylinder Head CALL
121-050-00-24 Guide, Valve, Std., Intake, 14.0mm 15.25
121-050-00-33 Rocker Arm, Intake 114.35
121-050-00-34 Rocker Arm, Exhaust 125.24
121-050-02-24 Guide, Valve, Intake, 1st OS, 14.22mm 33.00
121-050-03-01R Camshaft, 921: Rebuilt Please provide # on the cam when ordering. We also offer to rebuild yours. Please call for information. 277.50
121-050-06-24 Guide, Valve, Intake, 2nd OS, 14.18mm 34.50
121-050-21-24 Guide, Valve, Exhaust, 1st OS, 14.018mm 23.60
121-050-22-24 Guide, Valve, Exhaust, 2nd OS, 14.2mm 22.70
121-052-01-10 Chain, Engine Timing, 921 Engine 214.50
121-052-03-01 Gear, Camshaft 40.00
121-053-00-01 Valve, Intake 86.65
121-053-15-05 Valve, Exhaust 76.25
121-586-52-90 Complete Gasket Set Plus Valve Seals 338.87
136-501-00-54 Cap, Oil Filling 56.30
180-050-04-09 Gear, Timing Chain Tensioner (Idler) 169.00
180-050-05-74 Pin, Threaded, Rocker Arm Pivot, 928 52.65
180-052-06-80 Tensioner, Gasket 21.80
180-052-09-74 Pin, Guide, 921, 48.5mm, To # 8501731 22.69
180-052-10-74 Pin, Guide to Head Mounting, 58MM Long 14.20
180-053-06-22 Spring, Valve, Inner 10.75
180-053-06-60 Seal, Valve Stem Oil 5.39
180-993-12-25 Tension Spring to Rocker Arms, 928 Enging Only 1.00
180-997-02-40 Gasket, Oil Filler Cap 3.20
615-052-02-03 Gear, Crank Drive 80.00
615-053-01-20 Outer Valve Spring 7.45
621-052-00-74 Pin, Guide, 921, 51mm, From # 8501732 13.75

190SL - Engine Parts: Lower - Pg. 14
007603-026102 Gasket, Oil Drain Plug 0.80
77502 Bearing, Crank to Trans 22.00
000-180-00-09 Oil Filter, From Eng. # 9500082, W/Seals 8.90
000-184-06-80 Seal, Top 11.15
000-184-17-80 Seal, Bottom, Lower 9.30
000-184-22-25 Oil Filter, To Eng. # 9500081, Less Seals 10.95
000-184-32-80 Seal, Bottom, Upper 2.40
001-586-29-03 Ring Set, Piston, STD. 85.0mm 147.30
001-586-31-03 Ring Set, Piston, 1st OS. 85.5mm 158.85
001-586-35-03 Ring Set, Piston, 3rd OS. 86.5mm 147.30
001-997-12-41 Seal, Rear Main, To # 021506 10.00
008-997-16-47 Seal, Crank Front 11.20
114-011-00-80 Gasket, Tach Drive Adapter to Block 16.50
120-223-04-12 Mount, Motor, Left Front: Takes 4 108.90
120-240-04-18 Mount, Motor, Rear, up to 6500172 only 127.55
121-010-03-10 Side Cover 194.00
121-015-00-05 Side Cover, Right 193.00
121-015-01-21 Gasket, Side Cover, Right, 921 Eng. To # 8501731 20.00
121-015-02-21 Gasket, Side Cover, 921 Eng., To # 8501731 15.65
121-030-10-17 Piston, 921 Eng., 85.5mm, 1st OS 336.25
121-030-11-17 Piston, 921 Eng., 86.0mm, 2nd OS 336.00
121-030-12-17 Piston, 921 Eng., 86.5mm, 3rd OS 336.00
121-030-00-40 Bearing Set, Main 280.50
121-030-01-40 Bearing Set, Main, .25mm OS 212.40
121-030-02-40 Bearing Set, Main, .50mm OS 280.50
121-030-03-40 Bearing Set, Main, .75mm OS 243.38
121-030-04-40 Bearing Set, Main, 1mm OS 214.17
121-030-72-17 Piston, 928 Eng., 86.0mm, 2nd OS 377.43
121-032-03-05 Gear, Starter Ring 519.10
121-038-03-71 Screw, Rod Connecting 52.60
121-180-24-01 Pump, Engine Oil 814.00
121-030-00-60 Bearing Set, Rod, Std. 216.00
121-030-01-60 Bearing Set, Rod, .25mm OS 212.40
121-030-02-60 Bearing Set, Rod, .5mm OS 237.60
121-030-03-60 Bearing Set, Rod, .75mm OS 280.50
121-030-04-60 Bearing Set, Rod, 1mm OS CALL
121-540-02-59 Hose, Oil Pressure 61.50
130-997-00-32 Plug, Oil Drain 7.30
182-038-00-72 Nut, Rod Screw 14.70
186-038-07-50 Rod Bushings, 921 Eng. 55.00
198-542-01-30 Tach Drive Assembly, Mounts to Engine 1100.00
621-031-11-07 Counterweight, Crankshaft, Front 665.00
621-038-11-50 Rod Bushings, 928 Eng. 54.09
900255-078700 Seal, Rear Main, To # 021506 14.55

190SL - Fuel System - Pg. 15
000-070-11-52 Diaphram, To 161.55
000-091-91-01 Fuel Pump, 190SL Primer LV 259.00
000-471-20-30 Cap, Gas Locking, Non-Vented 408.40
000-477-05-06 Gasket, Fuel Valve Housing Early, Up to # 6502460 11.90
000-477-09-18 Wire Clip, Fuel Filter Early, Up to # 7502460 21.50
000-477-10-60 Gasket, Fuel Valve Housing 15.45
000-477-13-18 Wire Clip, Fuel Filter Late, From # 7502461 48.40
000-477-16-80 Seal, Fuel Filter Housing, Early, Up to # 6502460 20.85
000-477-28-80 Seal, Fuel Filter Cover 9.30
000-477-29-80 Seal, Fuel Filter Inner, Late Style 10.15
000-477-36-15 Filter, Fuel Early, Up to # 7502460 32.00
000-477-50-15 Filter, Fuel Late 18.20
000-477-76-01U Filter Assy to # 7502460: Used 350.00
000-477-81-01U Filter Assy From # 7502461: Used 224.00
000-542-73-17 Sending Unit 188.70
000-586-00-09 Repair Kit for Fuel Pump With Prime Lever 232.35
000-586-03-09 Repair Kit for Fuel Pump Without Prime Lever 161.55
000-990-07-63 Screw, Hollow, Carb. Bottom 16.15
000-991-16-22 Ball Socket, Carb. Linkage 8.77
000-991-17-22 Ball Socket 2.40
003862-004000 Ferrell, Drain Line 2.50
003871-004102 Nut, Drain Line 2.60
007603-006101 Washer, Carb. Screw 0.80
007603-026102 Gasket, Oil Drain Bolt 0.80
110-471-01-80 Gasket, Fuel 6.20
113-987-00-44 Plug Expansion 2.40
115-471-00-79 Gasket, Locking Gas Cap 4.75
120-155-00-82 Washer, Cupped Carb. To Mainfold 5.00
120-470-01-86 Screw, Fuel Drain 46.30
120-476-01-84 Mount, Rubber Lines to Floor 5.45
120-997-11-82 Hose, Fuel Vent 4.70
121-070-01-32 Line, Fuel, Double to Carbs. 348.50
121-070-01-32R Line, Fuel, Double to Carbs.: Reproduction 240.25
121-070-01-35 Fuel Pipe, Carb. Bottom 148.20
121-070-02-40 Linkage, Hot Start 257.95
121-070-06-24 Linkage, Caburator Set 185.30
121-070-10-75 Rod, Carb. W/Nut 41.15
121-070-ADP Adapter Plate (2 Pieces Set) 112.90
121-071-00-76 Washer, Carb. Flange, Rubber 24.75
121-071-01-80 Gasket, Carb. 13.65
121-094-01-79 Gasket, Silencer to Carbs. 7.85
121-470-00-70 Line, Fuel, Main, Up to # 7501825 73.15
121-470-02-70 Line, Fuel, Main, From # 7501826 69.90
121-470-08-01 Vented Fuel Tank 1500.00
121-470-08-01R Vented Fuel Tank, Reproduction 850.00
121-470-08-01U Fuel Tank Used CALL
121-471-00-81R Boot, Filler Neck: Reproduction 44.65
121-990-04-40 Washer, Carb. to Air Sil. Set-Up 1.60
121-991-03-40 Bushing, Carb. Flange 5.40
121-993-00-10 Spring, Hot Start 4.20
121-993-05-10 Spring, Acce. Return 7.80
128-476-07-26 Hose, Filter to Pump, Early, Up to # 7501825 14.00
130-091-00-80 Gasket, Pump Adp. 1.50
180-995-00-22 Clamp, Line to Floors 2.90
181-091-00-80 Gasket, Pump 2.50
198-476-04-26 Hose, Filter, From # 7501826 65.00
900331-005006 Rod, Carb. Linkage 10.60
900331-005091 Rod, Carb 8.30
SO-14K Repair Kit for Solex Carbs. 34.95
WE-21K Webber Carb Overhaul Kit 27.60

190SL - Chrome Trim and Emblems - Pg. 16
000-987-19-41 Gasket, Lock to Lid, From # 018347 5.85
000-990-17-33 T-Bolt, Dash Mouldings 3.55
000-994-00-01 Screw Kit, Grille to Body 32.00
000-994-01-21 Lock Plate, Trunk 7.00
120-750-00-84 Lock, Deck Lid w/ Keys, From # 018347 96.60
120-758-00-02 Handle, Trunk Lid, From # 018347 CALL
121-671-01-25 Rain Gutter, Left Chrome 76.63
121-671-02-25 Rain Gutter, Right Chrome 76.63
121-689-00-71 Moulding, Glove Box 46.80
121-689-01-71 Moulding, Dash Bottom Left 111.92
121-689-01-72 Moulding, Dash Top Left 141.00
121-689-02-71 Moulding, Dash Bottom Right 104.65
121-689-02-72 Moulding, Dash Top Right 140.44
121-690-00-27 Cover, Jack Hole: Reproduction 15.50
121-690-01-75 Stone Guard, Left 831.20
121-690-02-75 Stone Guard, Right 831.20
121-690-01-75U Stone Guard, Left - Unplated CALL
121-690-02-75U Stone Guard, Right - Unplated CALL
121-698-01-80 Moulding, Eyebrow, Left Front 519.75
121-698-01-81 Moulding, Rocker Panel, Left 472.35
121-698-02-80 Moulding, Eyebrow, Right Front 457.40
121-698-02-81 Moulding, Rocker Panel, Right 415.65
121-698-03-80 Moulding, Eyebrow, Left Rear 457.40
121-698-04-80 Moulding, Eyebrow, Right Rear 540.15
121-750-00-79 Star, Trunk 492.95
121-750-00-84 Lock Assy., Deck Lid, Tab Style 122.75
121-817-02-15 Emblem, 190SL, On Trunk 363.00
121-880-00-23R Grille Assy: Reproduction 2058.00
121-880-00-73R Bumper, Rear Center, Repro 463.05
121-880-01-23R Grille Wing, Left: Reproduction 382.20
121-880-01-72RU Bumper End, Left Rear, Unplated: Reproduction 550.00
121-880-01-72R Bumper End, Plated: Reproduction 558.60
121-880-02-23R Grille Wing, Right: Reproduction 382.20
121-880-02-72RU Bumper End, Right Rear, Unplated: Reproduction 500.00
121-880-02-72R Bumper End, Right, Plated: Reproduction 558.60
121-880-03-55 Bumper Guard, Left Rear 1790.00
121-880-03-86 Grille Star and Barrel Assy. 2120.00
121-880-04-55 Bumper Guard, Right Rear 1790.00
121-885-00-95 Shim, Front Bumper Joints 18.23
121-888-00-22R Grille Frame, Upper, Plated: Reproduction 900.00
121-888-01-22R Grille Frame, Lower, Plated: Reproduction 900.00
136-403-03-02 Mount Kit, 190SL, Emblem 27.20
136-527-00-71 T-Bolt, Rocher Moulding (Requires 14) 3.60
136-758-00-98R Gasket, Pad, Lock to Deck Lid, Early 9.35
180-400-02-25 Trim Ring, 13in: Excellent Reproduction 130.50
180-400-02-25R Trim Ring, 13in: Good Reproduction 182.60
186-401-00-25 Hub Cap: Original 460.00
198-817-00-16 Emblem, Hood 432.00
198-880-07-55 Bumper Guard, Left Front 693.33
198-880-08-55 Bumper Guard, Right Front 693.33
198-885-01-16R Bumperette, Left: Reproduction 130.50
198-885-02-16R Bumperette, Right: Reproduction 130.50

190SL - Seals and Gaskets - Pg. 17
000-301-00-97 Bellows, Accelerator Rod Thru-Firewall 38.15
000-826-05-97 Seal, Lic Lens, To Housing 10.30
000-826-06-97 Seal, Parking Lamp Lens 6.90
000-826-09-80 Seal, Headlight rim, USA. 39.00
000-987-12-40 Bumper, Hood, Round 9.10
000-987-15-40 Bumper Set, Hood to Cowl 7.75
000-987-40-52 Seal, Rubber, Frame to Cowl 21.45
000-987-47-35 Seal Set, Bumper Guards, To Bumpers. Includes 4 Pieces 25.00
000-987-55-51R Seal, Small Window 113.15
000-987-56-51 Seal, Large Window, Hard Top to Body: Reproduction 60.00
000-987-85-40 Bumper, Hood, Rectangle 10.50
000-988-31-78 Clamp, W/Barb, For Felt Seal (Takes 14) 2.90
113-987-04-40 Buffer, Rubber, Deck Lid Opening 2.50
115-725-09-65 Seal, Door Glass to Door Shell Felt Seal 23.90
120-546-00-85 Grommet, Headlamp Wiring, From # 017147 35.10
120-758-00-90 Gasket, Trunk Handle, From # 018347 15.35
120-826-12-97 Seal, Tail Light Lens, Early 51.60
121-471-00-81R Boot, Filler Neck: Reproduction 44.65
121-671-01-20 Seal, Windshield 206.95
121-671-01-20R Seal:Reproduction 75.00
121-671-01-96 Gasket, Windshield Post to Cowl 13.20
121-678-00-20 Seal, Small Window, Hard Top to Back Glass 136.15
121-690-00-98 Seal, Hard Top, To Windshield 183.31
121-690-00-98R Seal, Hard Top, To Windshield: Reproduction 106.50
121-720-01-78 Seal, Door, Left 388.45
121-720-01-78R Seal, Door, Left: Reproduction 93.65
121-720-02-78 Seal, Door, Right 388.45
121-720-02-78R Seal, Door, Right: Reproduction 93.65
121-725-00-66 Seal, Windshield Post to Door Glass, For Soft and Hard Top: Original 20.30
121-725-11-66 Seal, Door Glass, To Top, Left: Original 62.95
121-725-12-66 Seal, Door Glass, To Top, Right: Original 55.40
121-758-00-98 Seal, Trunk, W/Rope, Reinf.: Original 510.00
121-758-00-98R Seal, Trunk: Reproduction 75.00
121-766-01-05 Gasket Set, Door Handle, Left 20.40
121-766-02-05 Gasket Set, Door Handle, Right 20.40
121-770-00-98 Seal, Soft Top, To Windshield 318.00
121-770-00-98R Seal, Soft Top, To Windshield: Reproduction 88.95
121-790-00-83 Seal, Large Window, Hard Top to Back Glass 145.20
121-795-01-22 Seal, Hard Top to Body, Large Window Only, Left 69.90
121-795-02-22 Seal, Hard Top to Body, Large Window Only, Right 69.90
121-824-00-98R Seal, Wiper Shaft 11.80
121-885-00-97R Seal, Bumper Joint Cover (Requires 2) 15.79
121-885-01-97 Seal Set, Brackets to Body 25.60
121-987-05-37 Prop Rod Holder 11.05
180-811-03-96 Gasket, Mirror, Outside, Left 9.75
180-811-04-96 Gasket, Mirror, Outside, Right 10.85
180-826-04-97 Seal, Tail Light Lens, Late 24.75
198-826-00-97 Pad, Parking Light 10.40
721-155A Seal Set, Cut to Fit: Reproduction 84.00
SB-10A Bumper, Glove Box Door (Takes 2) 3.13

190SL - Door and Glass - Pg. 18
000-985-17-15 Rail, Door Panel Holding 26.00
121-671-00-27 Spoke, Windshield Center Tension 36.60
121-671-01-10 Glass, Windshield, Clear 550.00
121-671-02-10 Glass, Windshield, Tinted 288.00
121-671-01-10R Glass, Windshield, Clear - Repro 350.00
121-723-00-45 Door Hinge CALL
121-723-00-52 Pin, Door Hinge: Used 72.10
121-723-00-71 Door Hinge Bolt 10.50
121-725-00-55 Moulding, Door Top 80.00
121-725-01-10 Glass, Door, Left 420.00
121-725-02-10 Glass, Door, Right 420.00
121-725-01-10R Glass, Door, Left - Repro 259.20
121-725-02-10R Glass, Door, Right - Repro 259.20
121-725-02-32 Guide, Door Glass, Front 92.56
121-725-03-32 Guide, Door Glass, Rear 86.21
121-725-03-32R Guide, Reproduction 64.50
121-727-13-82 Moulding, Aluminum Insert, Arm Rest Trim (2 Pieces) 18.30
121-766-05-01 Handle, Door, Left, Outer, New, W/Keys 490.00
121-766-06-01 Handle, Door, Right, Outer, New, W/Keys 490.00
121-768-01-02 Window Crank, Early, All Chrome 202.50
136-768-00-03 Escutcheon Assy, W/Spring 67.30
180-720-03-93 Lever, Left Lock Assembly 170.81
180-720-04-93 Lever, Right Lock Assembly 193.95
180-723-01-61 Escutcheon, Inner Lock 115.00
180-723-02-24 Cover, Escutcheon Screw, Door Handle 19.00
180-760-01-81 Escutcheon, Inside, Door Release 11.07
180-760-05-61 Handle, Inside Door Release, Left 346.80
180-760-06-61 Handle, Inside Door Release, Right 255.30
180-766-01-26 Lock, Door Handle, Outer, W/Keys 295.00

190SL - Lighting - Pg. 19
1156 Bulb, 12V 18W 2.05
000-826-01-67 Lens, Lic Lamp, In Guard 14.65
000-826-01-77 Cover, Chrome, Lic Lens, In Guards 29.80
000-826-05-97 Seal, Lic Lens, To Housing 10.30
000-826-06-97 Seal Ring, Parking Lens 6.90
000-826-07-67 Lens, Amber 32.20
000-826-08-67 Lens, Clear 30.50
000-826-09-80 Seal, HL Assembly USA 39.00
000-826-10-80 Seal, HL Assembly Euro 16.80
072601-012100 Bulb, Headlamp, Hi/Lo, To # 0752149, Eur. 4.25
072601-012200 Bulb, Headlamp, Hi/Lo, From # 0752150, Eur. 11.60
108-820-03-62 Lamp, License Plate, Left, On Body 211.68
108-820-04-62 Lamp, License Plate, Right, On Body 211.68
120-820-00-20 Lamp Assy, Parking, Front, Clear 166.70
120-820-04-61 Headlamp Assy, Eur. 611.95
120-826-02-51 Lens, Tail Light, Reproduction, Early 260.00
120-826-02-89 Rim, Eur. Headlamp 229.25
120-987-00-37 Grommet, Early Headlight, Inner Fender 41.75
121-820-01-74 Reflector, Bumper-Mounted, Left 90.65
121-820-02-20 Lamp Assy, Parking, Front, Amber 166.70
121-820-02-74 Reflector, Bumper-Mounted, Right 90.65
121-820-02-61 Headlight Assy, USA, W/Rim 321.55
121-826-00-40 Reflector, Bumper Mounted, Less Bracket 44.69
121-826-01-90 Lens, Eur. Headlamps 203.28
121-826-04-89 Rim, Headlamp, USA 355.60
180-820-02-71R Lens, Red/Clear/Red: Reproduction 218.55
180-820-03-71 Lens, Tail Light, Red/Clear/Amber 252.30
180-820-04-71 Lens, Tail Light, Red/Clear/Red 234.98
180-820-05-64 Tail Lamp Assy, Red/Clear/Amber 408.20
180-820-06-64 Tail Lamp Assy, Red/Clear/Red 421.35
186-826-01-66 Lens, License Lamp, Early, On Body: Used Only 27.35
198-826-00-97 Pad, Parking Light 10.40
H12V-2W Bulb, Gauges, Parking Lamp Lighting 2.24
K12V-18W Bulb, Bullet Ends, Early Taillamps, Map Light 3.85

190SL - Carpet and Accessories - Pg. 20
000-811-01-65 Retainer, Mirror Glass 21.15
001-121-00-00 Carpet Set, Trunk, Square Weave 597.00
001-997-00-02 Decal With Instructions, Sold Separately 8.25
001-CS-SQW Carpet Set, Complete 1308.91
001-RRCS-SQW Carpet, Rear 909.85
121-542-00-00 Antenna 21.95
121-620-00-00 Pad Set, Carpet Underlayment 107.60
121-680-00-00 Jump Seat, Brackets 246.96
121-680-01-07 Floor, Rear, Wooden, Left 106.30
121-680-01-09 Cover, Tire Well, Left 107.50
121-680-02-07 Floor, Rear, Wooden, Right 101.80
121-680-05-08 Floor, Wood, False 24.25
121-684-00-10 Mat Set, Rubber, 5 Pieces 475.00
121-684-01-10 Mat Set, Floor Trunk (2 Pieces) 201.50
121-686-00-20C Sill Trim, Alum (Carpet) 45.65
121-686-00-20R Sill Trim, Alum (Rubber) 28.00
121-686-01-80 Sill Rubber Set (2 Pieces) 150.40
121-688-03-06 Kick Panel, Left or Right 20.00
121-810-00-17 Glass, Clear, Inside Mirror Cover 77.05
121-810-01-17 Mirror Head, Assy, Inside 335.16
121-810-02-17 Glass, Mirror, Inside, Refl. 116.10
121-810-05-10 Visor, Frame For Leather Style Only 64.60
121-810-05-17R Stem, Inside Mirror 139.60
121-811-05-41 Bracket, Leather Visor 8mm, Left 122.70
121-811-06-41 Bracket, Leather Visor 8mm, Right 122.70
180-810-97-19 Mirror Head, Outside 101.00
180-810-98-16R Mirror Assembly, Right Outer 234.00
180-810-99-16R Mirror Assembly, Left Outer 171.35
180-811-01-66 Glass, Outer Mirror 28.90
180-919-00-96 Buffer, Rubber, Seat Tilt Tabs, Takes 8 4.05
180-919-00-97 Buffer, Rubber, Seat Tilt Bracket, Takes 4 17.30
180-919-03-91 Seat Adjustment, Left Side of Seat 240.85
180-919-04-91 Seat Adjustment, Right Side of Seat 192.50
701-820-01-10 Antenna, Manual 21.45

190SL - Tops and Upholstery - Pg. 21
000-984-51-31 Bolt, Shoulder Top Frame 25.35
001-121-DP-LTHR Door Panel Kit 803.70
001-121-DP-TEX Door Panel Kit 115.84
001-121-FS-L-55 Seat Covers, Leather, Bucket Seat Style 1708.95
001-121-FS-LTHR Seat Covers, Leather, Late Style, 57-63 1528.10
001-121-FS-T-55 Seat Covers 264.74
001-121-FS-TEX Seat Covers, M B-TEX, Late Style, 57-63 231.79
019-LTHR 1 Hide Leather 12.00
121-650-01-40 Turnbuckle, To Hard Top, Left: Reproduction 97.35
121-650-02-40 Turnbuckle, to Hard Top, Right: Reproduction 97.35
121-690-00-71 Turnbuckle, Rear, Left or Right 266.95
121-696-01-72 Catch, Hard Top, Rear Turnbuckle 87.70
121-722-01-98R Seal to Pillar Set CALL
121-770-00-02U Top, Frame, Conv.: Used 5200.00
121-770-00-26 Latch, Top Center to Windshield Frame 238.75
121-770-00-37 Wood Bow, Rear: Reproduction 217.35
121-770-00-66 Cable, Top Tensioner 40.00
121-770-01-10 Wood Bow, Front: Reproduction CALL
121-770-01-29 Latch, Soft Top, Left 164.77
121-770-01-65R Cable Assy, W/Screw, Left 61.20
121-770-02-29 Latch, Soft Top, Right 165.14
121-770-02-65R Cable Assy, W/Screw, Right 61.20
121-770-05-39 Woodside Bow, Left 144.20
121-770-05-65 Tensioner, Soft Top, Left 215.99
121-770-06-39 Woodside Bow, Right 144.20
121-770-06-65 Tensioner, Soft Top, Right 243.38
121-770-09-26 Latch Hook Assembly, Left 151.20
121-770-10-26 Latch Hook Assembly, Right 151.20
121-779-01-29 Rail, Top Cable Hold Down Aluminum 230.00
121-779-01-36 Cap, End Rail, Chrome, One Hole, Left (55-56) 89.91
121-779-01-64 Moulding, Soft Top 294.95
121-779-02-36 Cap, End Rail, Chrome, One Hole, Right (55-56) 86.70
121-779-03-36 Cap, End Rail, Chrome, 2 Hole Without Snap, Left (57-63) 86.68
121-779-04-36 Cap, End Rail, Chrome, 2 Hole Without Snap, Right (57-63) 86.70
121-790-01-50 Headliner, Beige, Large Window, Hard Top 344.85
121-790-02-50 Headiner, Beige, Small Window, Hard Top 328.35
150-5033-LTHR Boot 869.65
150-5033-TEX Boot 434.83

190SL - Grommet Set - Pg. 22
110-997-88-81 Grommet Set 70.00


Please note that we cannot guarantee our prices due to fluctuating supply, currency exchange, and cost of materials.
